Lumit® IL-4 (Human) Immunoassay

Quantify Cytokine Release Without Tedious Wash Steps

The Lumit® IL-4 Immunoassay quantitatively measures released IL-4 in cell culture samples using a simple, no-wash protocol. Just add labeled antibodies to the sample, add detection reagent and read luminescent signal using a standard plate-reading luminometer. The entire protocol is completed in less than 70 minutes! The assay can be used directly on cells in culture or culture medium transferred to a separate assay plate.

How the Lumit® IL-4 Immunoassay Works

Primary antibodies to IL-4 were selected for their specific and sensitive detection and labeled with the LgBiT and SmBiT subunits of NanoBiT® Luciferase. In the presence of IL-4, the subunits are brought together to form an active luciferase enzyme. Addition of optimized substrate generates a bright luminescent signal proportional to IL-4 levels.

Simple One-Plate Protocol, No Wash Steps

Large Dynamic Range of Lumit® IL-4 Detection

The pg/ml to ng/ml linear range of Lumit® detection covers expected concentrations for most cell models.

Assay	IL-4 Human Immunoassay
Limit of Detection (LOD)	6.7pg/ml (3 SD above background)
Dynamic Range	18.2pg/ml – 25ng/ml
Minimal Detectable Dose (MDD)	4.5pg/ml (2 SD above background)
Assay Time	70 minutes
Sample Type	Cell culture supernatants

SD=Standard Deviation

Sensitive Quantitation of Low-Level IL-4 Release

Quantitation of low-level IL-4 release with the lumit IL4 assay. — When treated with a Cell Stimulation Cocktail (CSC), T helper type 2 (Th2) cells and human PBMCs (PBMC) each release low levels of IL-4. Following 24 hours of CSC treatment, Lumit® IL-4 Immunoassay reagents were added directly to cell wells to measure IL-4 release.

Same-Well Multiplexing with Viability and Cytotoxicity Assays

Explore Additional Cytokine Detection Assays

We offer a growing portfolio of assays to detect cytokines in cell culture samples.

Can’t find your target in the list?

Please enquire about early access to new assays in development.

For a biotech that understands time is of significant value, the Lumit® Immunoassays are an essential way for us to gather reliable data fast so that we can reach conclusions and make decisions sooner.

Jonathan Chow, Principal Scientist, Corner Therapeutics

Protocolos

Complete Protocol

Lumit™ IL-4 (Human) Immunoassay Technical ManualPDF (1896 KB) – English

Contenido

Item	Part #	Presentación	Concentración
Lumit® Detection Substrate B	VB405A	1 × 160μl
Lumit® Detection Buffer B	VB406A	1 × 3.2ml

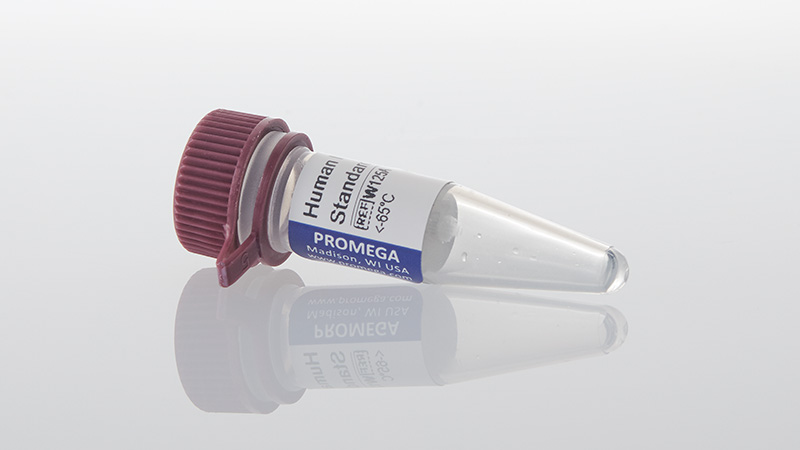

Human IL-4 Standard	W125A	1 × 25μl	10μg/ml
Anti-hIL-4 mAb-SmBiT, 500X	W126A	1 × 30μl
Anti-hIL-4 mAb-LgBiT, 500X	W127A	1 × 30μl

SDS

Search for SDS

Certificado de Análisis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Condiciones de Almacenaje

Patentes y Exclusiones

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.

Contenido

Item	Part #	Presentación	Concentración
Lumit® Detection Substrate B	VB405A	5 × 160μl
Lumit® Detection Buffer B	VB406A	5 × 3.2ml
Human IL-4 Standard	W125A	1 × 25μl	10μg/ml
Anti-hIL-4 mAb-SmBiT, 500X	W126A	5 × 30μl
Anti-hIL-4 mAb-LgBiT, 500X	W127A	5 × 30μl

SDS

Search for SDS

Certificado de Análisis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Condiciones de Almacenaje

Patentes y Exclusiones

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.

Contenido

Item	Part #	Presentación	Concentración
Lumit® Detection Substrate B	VB405B	1 × 1.25ml
Lumit® Detection Buffer B	VB406B	1 × 25ml
Human IL-4 Standard	W125A	1 × 25μl	10μg/ml
Anti-hIL-4 mAb-SmBiT, 500X	W126B	1 × 300μl
Anti-hIL-4 mAb-LgBiT, 500X	W127B	1 × 300μl

SDS

Search for SDS

Certificado de Análisis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Condiciones de Almacenaje

Patentes y Exclusiones

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.

Recursos

Artículos

Lumit® Cytokine Assays: Interpolating Data with the GloMax® Discover

Posters

Homogeneous, Bioluminescent Cytokine Assay Applied to a Monocyte Activation Test for Pyrogen Detection

Otros

Productos Similares

Lumit® IL-1β Human/Mouse Immunoassay

Cuantifica la activación del inflamasoma mediante la medición de la IL-1β liberada utilizando un protocolo sencillo y sin lavado.

W6010, W6011, W6012, W7010, W7011, W7012

Lumit® HMGB1 Human/Mouse Immunoassay

Cuantificación de HMGB1 mediante un protocolo add-mix-measure en menos de 90 minutos.

W6110, W6112

Lumit® Immunoassay Labeling Kit and Detection Reagents

Kit de marcaje de anticuerpos y reactivos de detección para ayudar a desarrollar inmunoensayos Lumit®.

VB2500, VB2010, VB2020, VB2030, VB4050, VB4060

Lumit® IL-2 (Human) Immunoassay

Mide cuantitativamente la IL-2 liberada en muestras de cultivos celulares mediante un protocolo sencillo y sin lavado.

W6020, W6022, W6021

Lumit® IL-6 (Human) Immunoassay

Mide cuantitativamente la IL-6 liberada en muestras de cultivos celulares mediante un protocolo sencillo y sin lavado.

W6030, W6032, W6031
