PowerPlex® 18D System

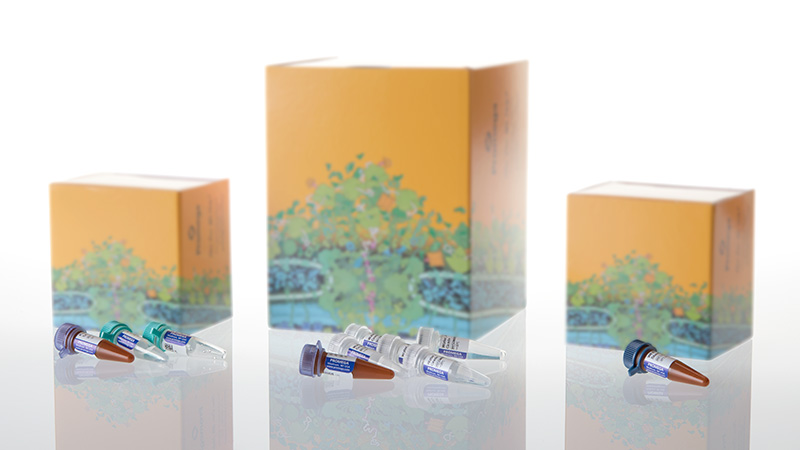

DC1802_PowerPlex--18D-System--200rxn
customize-this-small
View information on global supply logistics

Multiplex STR System for Use in Database and Paternity Testing

  • Direct amplification from FTA® cards
  • Amplify in < 1.5 hours
  • Co-amplification of D2S1338, D19S433, Penta D, Penta E, Amelogenin and 13 CODIS loci

Presentación

Catalog number selected: DC1802

$ 5,910.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
PowerPlex® 18D System
200 reactions
$ 5,910.00
Your price: Acceder
Cambiar Configuración

Simplify and Shorten Sample Processing

The PowerPlex® 18D System is a multiplex STR system for use in database and paternity testing. This system is optimized for direct amplification of samples on FTA® cards in less than 1.5 hours using rapid cycling technology. This five-color multiplex allows co-amplification of the 13 CODIS loci (D18S51, D21S11, TH01, D3S1358, FGA, TPOX, D8S1179, vWA, CSF1PO, D16S539, D7S820, D13S317, D5S818) plus Amelogenin, Penta E, Penta D, D2S1338 and D19S433. All eighteen loci are amplified simultaneously in a single tube and analyzed in a single injection.

Panels and bins text files are required for automatic assignment of genotypes using the GeneMapper® ID and ID-X software and are available for download. The PowerPlex® 18D System is compatible with Spectrum Compact CE System and Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.

13648TA-W
Two 1.2mm punches were taken from a buccal sample transferred to an FTA® card and amplified for 27 cycles using the PowerPlex® 18D System. Amplification products were mixed with WEN Internal Lane Standard 500 and analyzed with an Applied Biosystems 3500xL Genetic Analyzer using a 1.2kV, 24-second injection. Results were analyzed using GeneMapper® ID-X software, version 1.4.
ForensicGrade

Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

Rapid Processing Solutions for PowerPlex® Systems

The 5X AmpSolution™ Reagent, SwabSolution™ Kit and PunchSolution™ Kit allow fast and simple processing of swabs and punches for analysis with various PowerPlex® Systems, including the PowerPlex® Fusion, 21, 18D, 16 HS, ESX, ESI, CS7 and Y23 Systems. These products are intended for preparation of single-source reference, database and paternity samples where sample purification is unnecessary.

Which Product is Right for Me?

Take me to the Product Selector

Especificaciones

You are viewing: DC1802 Cambiar Configuración

Contenido

Item Part # Presentación Concentración Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500

DG500A 1 × 200μl View Product

PowerPlex® 18D Allelic Ladder Mix

DG181B 1 × 100μl

PowerPlex® 18D 5X Primer Pair Mix

DK167B 1 × 1ml

PowerPlex® D 5X Master Mix

DP104A 1 × 1ml

Water, Amplification Grade

DW099A 5 × 1,250μl View Product

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

BB

Patentes y Exclusiones

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Especificaciones

You are viewing: DC1808 Cambiar Configuración

Contenido

Item Part # Presentación Concentración Available Separately

2800M Control DNA

DD710A 1 × 25μl 10ng/μl View Product

WEN Internal Lane Standard 500

DG500A 4 × 200μl View Product

PowerPlex® 18D Allelic Ladder Mix

DG181B 4 × 100μl

PowerPlex® 18D 5X Primer Pair Mix

DK167B 4 × 1ml

PowerPlex® D 5X Master Mix

DP104A 4 × 1ml

Water, Amplification Grade

DW099A 10 × 1,250μl View Product

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

BB

Patentes y Exclusiones

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.
