Lumit® Canine FcRn Binding Immunoassay
Measure Canine Neonatal Fc Receptor Binding to IgG Molecules
- Powerful alternative to traditional ELISAs
- High sensitivity and broad dynamic range: 3–4 logs
- Solution-based: no immobilization artifacts
- Flexible formats: 96- or 384-well plates
Lumit® Canine FcRn Binding Immunoassay
| Catalog No. | Product Name | Size | Price | Qty | |||
|---|---|---|---|---|---|---|---|
| CS3019A02 | Early Access Lumit® Canine FcRn Binding Immunoassay | View Specifications | 1 each | Consultar Precio |
Early Access = This product is available under our Early Access program - Learn More
Catalog (FT) = This product is available under our Catalog (FT) program - Learn More
Unleash A Faster, Simpler Canine Immunoassay
Very little is known about the functional characteristics of canine IgG subclasses, including to what degree the various classes bind Fc receptors, engage the immune system or their half-life in serum. Understanding the binding affinities of the canine IgG subclasses to immune effector proteins such as Fc gamma receptors (FcγR) and neonatal Fc receptor (FcRn) is critical for gaining insight into canine immunology and for the discovery and development of therapeutic monoclonal antibodies for the treatment of canine malignancies.
Given the nascency of, but rapid growth and interest in, the canine immune-oncology field, there is a substantial need for biologically relevant methods to characterize binding properties of canine immunoglobulins.
The Lumit® Canine FcRn Immunoassay is a novel competition binding assay to aid researchers in evaluating canine IgG molecules. Lumit® assay technology is based on NanoBiT® luciferase complementation. LgBiT-labeled tracer binds to SmBiT-labeled cFcRn target, resulting in protein complementation and generation of bright luminescent signal. Addition of test antibodies that bind to cFcRn causes displacement of tracer, resulting in dose-dependent decrease in luminescence.
Discover an application for Lumit® Canine FcRn Assay in Morel, B. et al. (2024) Exploring the potentiality of a plant platform for monoclonal antibody production in veterinary medicine. Vaccines. 12, 620.
Demonstrate Canine FcRn Binding Through Competition Immunoassay
Principle of Lumit® Canine FcRn Immunoassay. Lumit® Canine FcRn (cFcRn) Binding Immunoassay is based on competition immunoassay format. In the assay, a canine IgG1 labeled with LgBiT (Tracer-LgBiT) is used as the tracer. A C-terminal biotinylated canine FcRn bound to Streptavidin-SmBiT (cFcRn- SmBiT) is used as the target. In the absence of an antibody analyte sample, Tracer-LgBiT binds to the cFcRn-SmBiT target, resulting in maximum luminescence signal. In analyte samples, unlabeled IgG will compete with Tracer-LgBiT for binding to the FcRn target, resulting in a concentration-dependent decrease in luminescent signal.

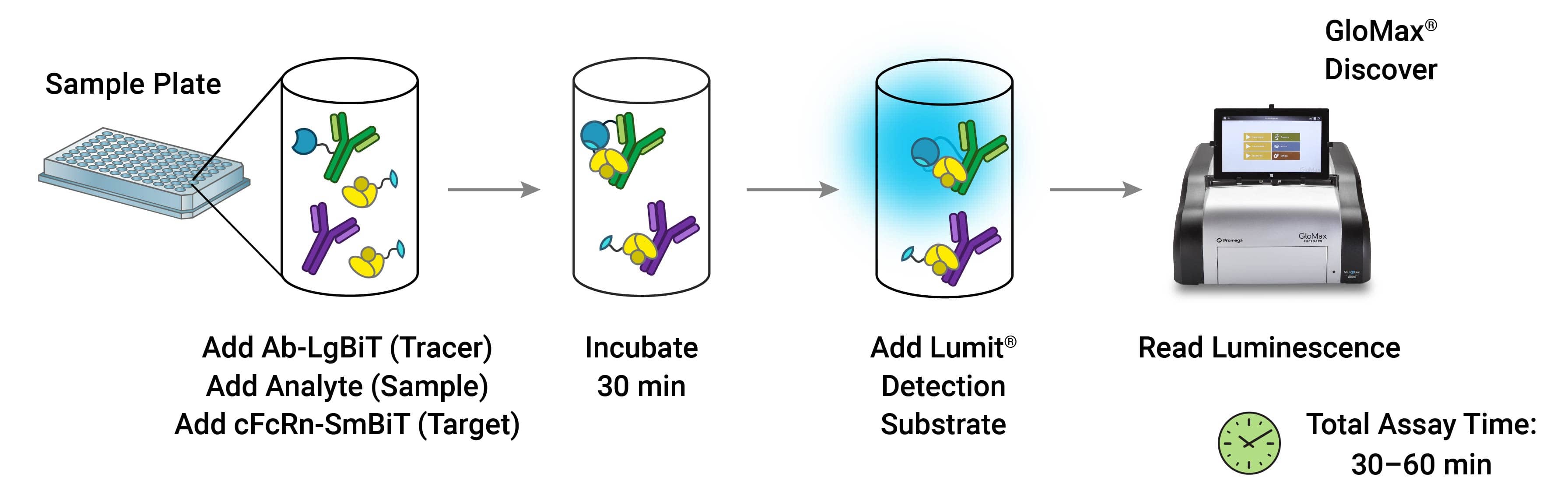

Simple Assay Protocol: Add-Mix-Read
- Solution-Based Assay: No plate immobilization artifacts.
- Homogeneous: Kit includes all of the required reagents in standardized formats.
- Add-Mix-Read Protocol: No wash or transfer steps.
Lumit® Canine FcRn Assay Performance Data
Lumit® cFcRn Binding Immunoassay displays a good assay window in both raw (Panel A) and normalized signal (Panel B) at pH 6.0 (S/B ratio: ~70).
Interested in additional animal health bioassays?
Contact us to learn about our bioassay development services.
Protocols
No protocols available
Specifications
Catalog Number:
Contenido
| Item | Part # | Presentación |
|---|---|---|
Canine FcRn-SmBiT |
CS3019A03 | 1 × 40μl |
Canine Tracer-LgBiT |
CS3019A04 | 1 × 65μl |
Control Canine Ab |
CS3019A05 | 1 × 45μl |
Lumit® Detection Substrate A |
VB301D | 1 × 75μl |
FcRn Assay Buffer |
W112A | 1 × 25ml |
pH Adjustment Buffer |
W113A | 1 × 250μl |
