Maxwell® CSC 48 Instrument
Nucleic Acid Extraction for IVD and Research Use
- Purifies 1–48 samples in a single run
- Provides consistent and reliable high-quality nucleic acid extraction for use in downstream diagnostic amplification assays
- Flexible, multi-functional software with separate RUO mode for performing extractions intended for use in research applications
- Provides technical elements supporting 21 CFR Part 11 compliance (user authentication and authorization, data integrity and protection, electronic signatures and audit trails) when used with the appropriate laboratory workflow
- Manufactured under cGMP and compliant with relevant IVD medical device regulations, including Regulation (EU) 2017/746 on In Vitro Diagnostic Medical Devices (IVDR) and US IVD regulations
Catalog Number:
Size
Catalog Number: AS8000
Manufactured Under cGMP
The Maxwell® CSC 48 automated nucleic acid extraction system is an in vitro diagnostic medical device specifically designed for clinical laboratories processing multiple samples for critical downstream assays. Manufactured under cGMP, the consistent performance of the Maxwell® CSC 48 Instrument assures extraction of high-quality DNA or RNA from every run.
Flexible, Multipurpose Instrument
A truly versatile instrument with dual-mode software for performing extractions from IVD kits and chemistries in IVD mode, and extractions for a broad range of research applications when operated in the RUO mode.
Product is currently only available in Austria, Belgium, Canada, China, Croatia, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Korea, Latvia, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom and United States.
Maintain Electronic Records Easily
Maxwell® CSC 48 makes maintaining electronic records easy with complete tracking of every run and reports that are portable and LIMS-compatible. The instrument supports 21 CFR Part 11 requirements for electronic records (user authentication and authorization, data integrity and protection, electronic signatures and audit trails) when used with the appropriate laboratory workflow.
Fewer Cross-Contamination Worries with a Paramagnetic Particle Mover
The Maxwell® CSC 48 Instruments are magnetic particle movers, not liquid handlers. As no liquid handling or splashing occurs during sample processing there is minimal risk of cross-contamination.
Maxwell® CSC 48 Makes it Easy to Set Up and Run Samples
Dual Mode Functionality
Extract high-quality DNA/RNA for downstream diagnostic amplification assays in IVD mode or extract samples for a variety of research applications in RUO mode.
Track Samples Easily
The integrated bar code reader records important information such as sample ID, kit ID and kit lot number.
Easy to Use
The intuitive touch screen interface lets you easily set up your purification run.
Reduce Processing Time

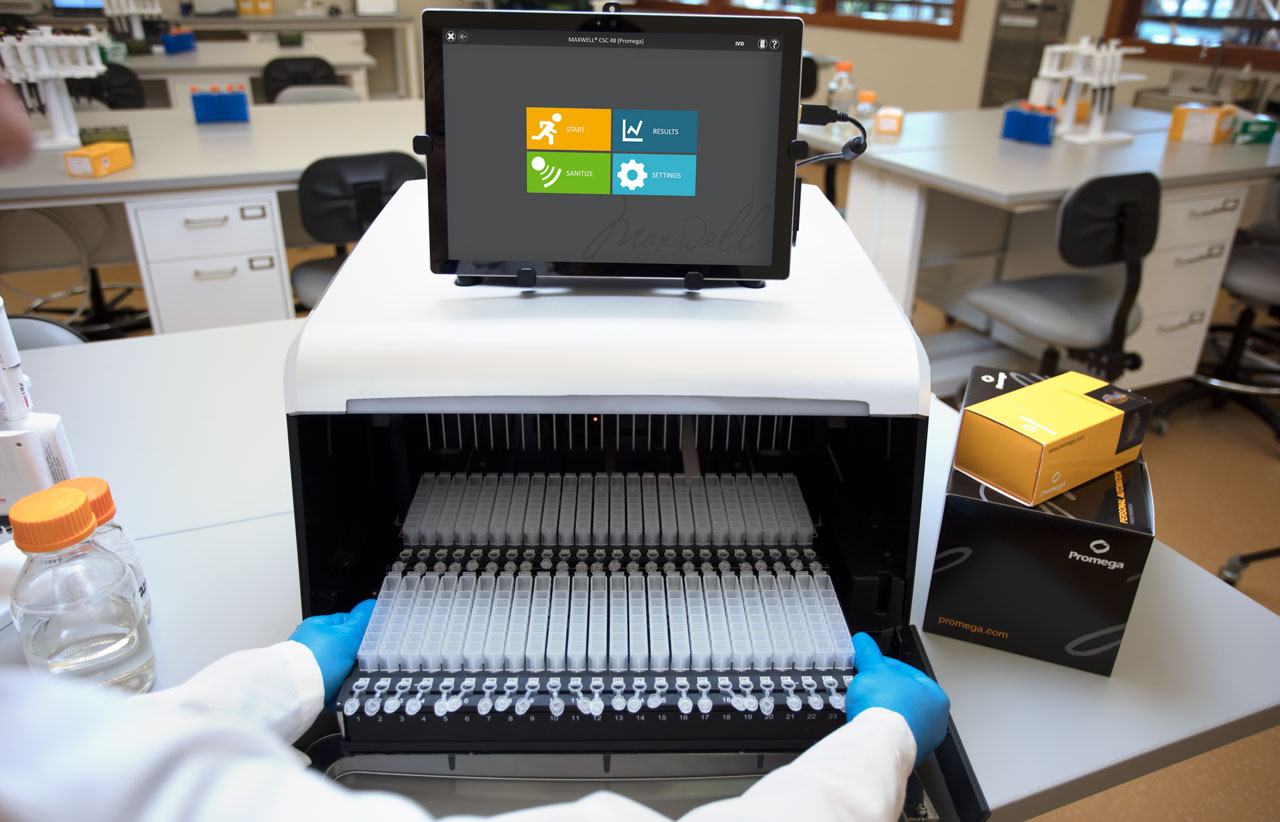

Place prepared cartridges in the Maxwell® CSC 48. Press “Start” to purify 1–48 samples using the selected kit’s preprogrammed method.
Works with Multiple Sample Types
RUO Mode (DNA Extraction)
RUO Mode (TNA and RNA Extraction)
To use a purification kit, you will need to load the appropriate method onto your Maxwell® CSC 48 Instrument.
Instrument Specifications
Processing Time: 40–60 minutes (depending on sample type and method)
Number of Samples: Up to 48
Weight: ~60lb (~27kg)
Dimensions: (W × D × H) 21 × 21 × 14 inches (533.4 × 533.4 × 355.6mm)
Power Requirements: 100–240VAC, 50/60Hz, 4A
Fuse: 250VAC, 4A, low breaking capacity, time-lag fuse (AC250V, T4AL, 5 × 20mm)
UV Bulb: Average lifetime approximately 9,000 hours, length 212.1mm, diameter 16mm, 6W, 0.17A current, 42V, spectral peak F 253.7, UV output 1.7W
Instrument Standard Components

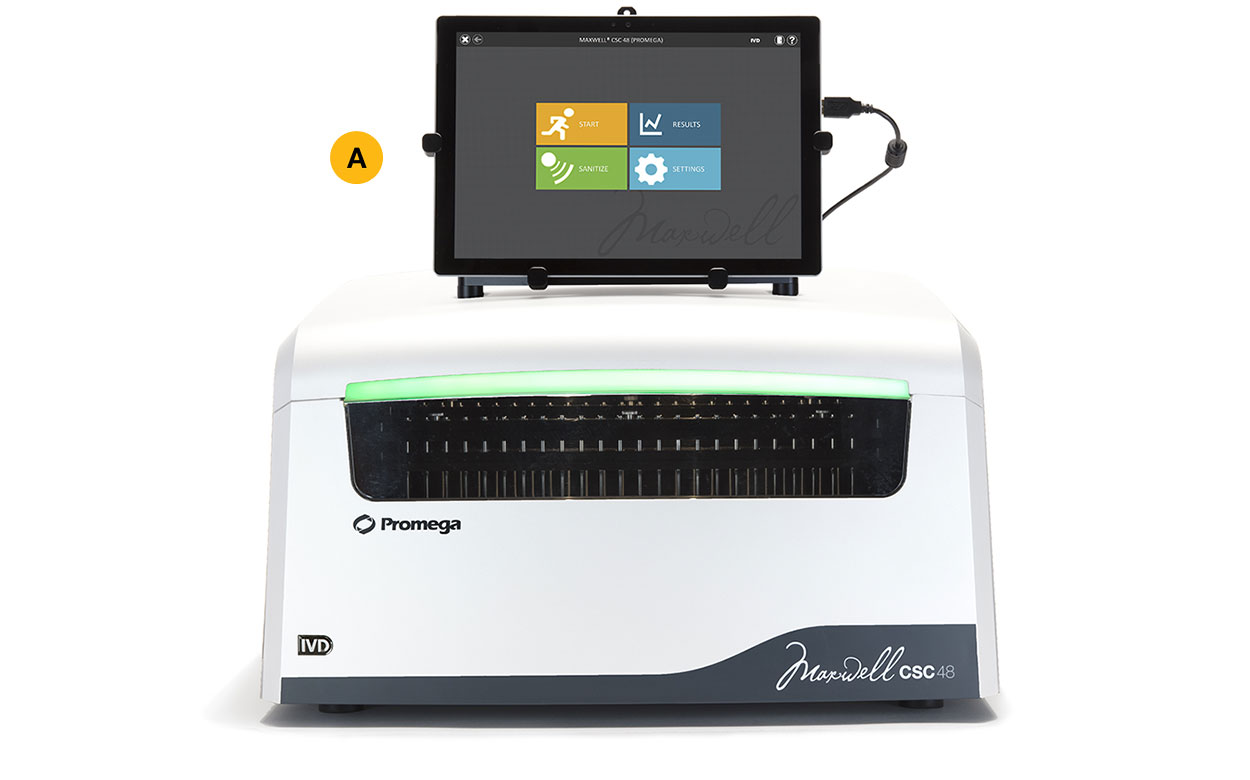

A. Maxwell® CSC 48 Instrument
B. Tablet PC preloaded with Maxwell® CSC 48 Application Software
C. Power Adapter for Tablet PC
D. Communication Cable for Bar Code Reader
E. Power Cord for Tablet PC (Instrument Power Cord provided separately)
F. Front and Back Deck Trays
G. Handheld Bar Code Reader
H. USB Cable: Maxwell® CSC 48 Instrument to Tablet PC
Not shown: Tablet PC Holder
Not shown: Power Cord for Instrument
Not shown: UV Bulb (installed)
Not shown: Quick Start Guide and Setup Guide
Accessories Available Separately
Additional deck trays and plungers are available for purchase separately.
Service and Support
One Call Supports It All
Promega supplies both the reagents and the instrument, so one call to Promega answers any questions you may have about assay chemistries or instrument performance.
Ensure Minimal Instrument Downtime
- Field Support and Loaner Programs
- Service Packages
- IQ and OQ Packages
Warranty and Service Agreements
- Backed by a one-year warranty.
- Additional warranty and service agreements are available.
- For more information contact Promega Technical Services.
Specifications
Catalog Number:
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For In Vitro Diagnostic Use. This product is only available in certain countries.Condiciones de Almacenaje
U.S. Pat. Nos. 7,721,947 and 7,891,549, European Pat. No. 2033144 and Japanese Pat. Nos. 5519276 and 5654519.
