Working with bioluminescent reporters? Visualize your data using the GloMax® Galaxy Bioluminescence Imager. For Research Use Only.

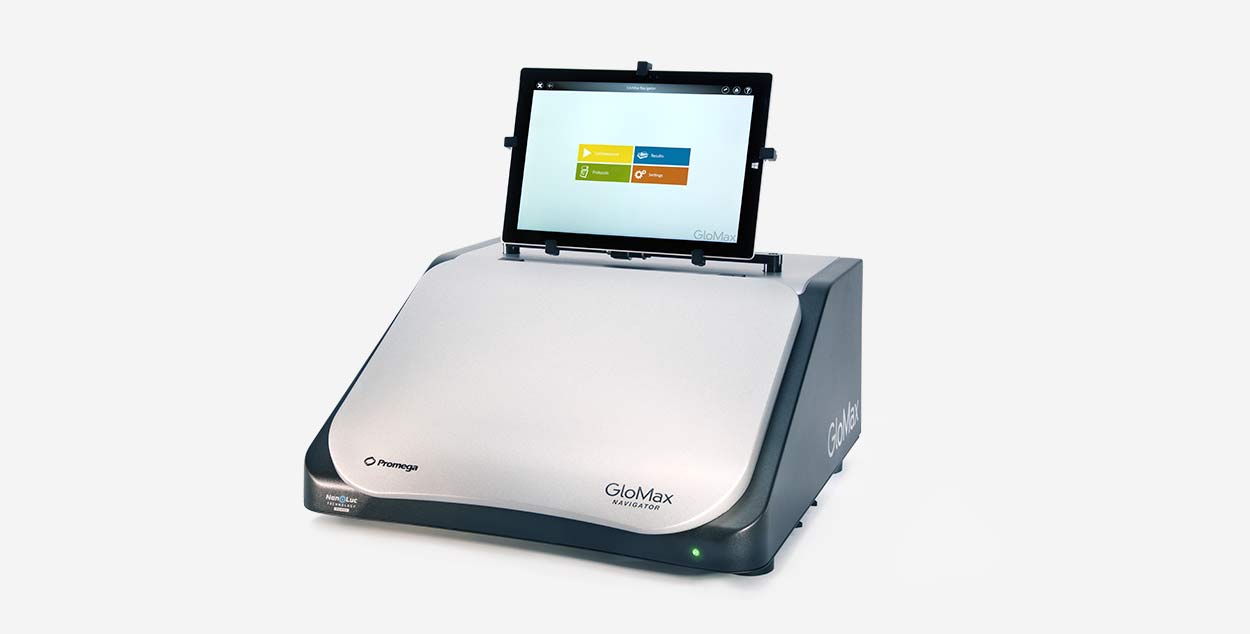

GloMax® Navigator System

GloMax Navigator Plate Reader Luminometer GM2000

Easy-to-Use Microplate Luminometer

  • Integrated tablet PC provides quick and easy navigation
  • Developed and optimized with Promega cell and gene reporter assays for seamless workflow
  • Over 30 preloaded protocols for Promega assays

Choose an option

Size

Catalog number selected: GM2000

Your price:
Add to Cart
This product is discontinued
Solicitar una Demo
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
GloMax® Navigator System
Luminometer/1 each
Your price: Acceder
Cambiar Configuración

Sensitive, Ready-to-Use Microplate Luminometer

GloMax® Navigator is an easy-to-use microplate luminometer integrated with Promega chemistries for superior luminescence assay performance. The instrument comes ready to use—simply unpack it, plug it in and begin your experiments. You can also interpret results using integrated data analysis software.

GloMax® Navigator provides superior sensitivity and dynamic range for both strong and weak bioluminescence experimental samples as well as seamless integration with Promega  bioluminescence assays, including gene reporter, cell-based and biochemical assays. The microplate luminometer features optional dual injectors to measure both glow- and flash-based luminescent reactions in 96-well plates.

The luminometer is operated by an integrated Tablet PC, which provides quick and easy navigation through the control options. Exporting your results is simple with a variety of options, including export to your local data network, USB flash drive and cloud-based storage location.

Microplate Luminometer image

Preloaded Protocols for Faster, Easier Data Analysis

GloMax® plate readers have high sensitivity and a wide dynamic range, so you can detect both high and low signals on the same plate and have confidence in the accuracy of the signal recorded from each well. These instruments provide a range of options for your throughput needs and are equipped with integrated software that makes data analysis easy. GloMax® instruments come preloaded with protocols designed to work seamlessly with a wide variety of Promega luminescent and fluorescence-based assays at the touch of a button.
Compatible Promega Assays

GloMax® Instruments Come with Dozens of Preloaded Protocols

glomax navigator has 40+ preloaded protocols
glomax explorer has 65+ preloaded protocols
glomax discover has 70+ preloaded protocols

Easy 24-Hour Kinetic Reads for Live-Cell Assays

Easy 24-Hour Kinetic Reads for Live-Cell Assays

Easy Multi-Day Reads for Real-Time Assays

Easy Multi-Day Reads for Real-Time Assays

GloMax® Application Notes

No need to reinvent the wheel—we’ve already used GloMax® instruments for everything from cell viability, toxicity and metabolism, kinase and cell signaling, reporter gene assays, nucleic acid quantitation for NGS sequencing, PROTACs and protein degradation, bioassays, BRET, ELISAs and even water quality testing. Search our Application Notes collection for examples using GloMax® instruments with a wide range of bioluminescence- and fluorescence-based assays.

Search Application Notes
GloMax Discover System Multimode Plate Reader

Luminometer Performance

Simple Luminometer interface
Easy-to-Use

  • Simple touch screen navigation with full PC capabilities.
  • Choose from over 30 preloaded protocols and spend less time optimizing.
  • Build custom protocols using the intuitive drag-and-drop interface.
  • Export data to a network, cloud or any drive desired.
Luminescence Plate Reader GM2000
Superior Performance

  • Highest instrument sensitivity to measure the lowest assay signals.
  • Low cross-talk between wells gives you better, more usable results.
  • Broad dynamic range of the instrument extends the linear range of your assay.
Microplate Luminometer inside view
Quality

  • Designed to comply with FDA 21CFR Part 11 regulations
  • Provides user authentication and authorization, data integrity and protection, electronic signatures, and audit trails
  • IQ/OQ service available
  • Field-based service available

Accurate Results from Every Well

There are three ways that microplate readers can affect how much useful information you get from each plate. Poor sensitivity may cause you to miss low-level samples that could be the “hit” you are looking for. Letting the signal from bright wells spill into adjacent wells allows crosstalk to occur and skews your experimental results. And a narrow detection range limits the accuracy and reproducibility that your work requires. With the GloMax® plate readers, you can rest easy and have confidence in your results.
Illustration of GloMax plate reader sensitivity
Superior sensitivity so you don’t miss hits

GloMax® microplate readers offer superior sensitivity and auto-gain adjustment letting you measure weak and strong signals on the same plate.

GloMax plate readers minimize crosstalk
Masking so crosstalk doesn’t mislead your results

The masking design of GloMax® microplate readers means you can be confident that the results from each well are not skewed by signal from neighboring wells.

GloMax plate readers detect a broad signal range
Broad detection range so you don’t limit your experiments

With the broad detection range of GloMax® microplate readers, you can measure signals ranging from high intensity to near physiological levels.

Microplate Reader Compliance for Your GxP Workflow

glomaxworkflowfigure

Not sure if GloMax® Navigator is the right choice for your lab?

Find the instrument that's right for your needs. Compare Plate Readers

glomax-instruments

Service and Support

One Call Supports It All

Promega supplies both the reagents and the instrument, so one call to Promega answers any questions you may have about assay chemistries or instrument performance.

Contact Technical Services

Ensure Minimal Instrument Downtime

  • Field Support and Loaner Programs
  • Service Packages
  • IQ and OQ Packages

Warranty and Service Agreements

  • Backed by a one-year warranty.
  • Additional warranty and service agreements are available.
  • For more information contact Promega Technical Services
Luminometer Service Support

Design Features

Instrument Specifications
Detection Modes Luminescence
Sample Format 96-well plates
Tablet PC Windows® 8.1 or 10 Tablet PC with USB connection to instrument
Dimensions 18.6in (47.2cm) width
20.0in (50.8cm) depth
9.4in (23.9cm) height without Tablet and PC mounted
18in (45.7cm) height with Tablet and PC mounted
Weight Approximately 40lbs. (18.1kg)
Power Requirements 120VA, 50/60 HZ
Warranty 1-year parts and labor warranty included
Regulatory Compliance For Research Use Only. Not for use in Diagnostic Procedures
Luminescence Module Specifications
Detector Top-reading, head-on photon counting photomultiplier tube (PMT)
Wavelength Range 350–700nm
Detection Limit 1.5 × 10-21 moles of luciferase
Linear Dynamic Range >9 logs
Cross-talk Less than 3 × 10-5 (white, 96-well plate, Corning 3912)
Injector System Specifications
Number of injectors (optional) Two injectors
Dispense Volume Range 5–200µl in 1µl increments
Plate Compatibility 96-well plates
Injection Speed 20–500µl per second
Waste Collection Tray Volume Approximately 50ml
Void Volume 500µl
PC Requirements
Operating System Windows® 8.1 or 10 Professional version, 64-bit, with USB connection to instrument
RAM 4GB
Disk Space 64GB
Other Requirements Microsoft.NET 4.6.1 Framework or newer (full version)

Available Separately

Product Catalog #
Dual Injector Pump Station Upgrade for GloMax® Navigator SA1304
Replacement Tubing Set, GloMax® Navigator GM2030
Light Plate E6531
USB Ethernet Adapter AS8403
Bar Code Reader AS3200
GloMax® Navigator Sales Rental E5302
GloMax® Navigator Installation Qualification SA1305
GloMax® Navigator Operational Qualification SA1306
GloMax® Navigator Installation and Operational Qualification SA1307
GloMax® Navigator Preventive Maintenance SA1308
GloMax® Navigator Standard Service Agreement SA1301
GloMax® Navigator Premier Service Agreement SA1313
GloMax® Navigator Premier Warranty Upgrade SA1312

Especificaciones

You are viewing: GM2000 Cambiar Configuración

Certificado de Análisis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Condiciones de Almacenaje

DD

Store at 4–50°C under noncondensing conditions and up to 75% humidity.

Patentes y Exclusiones

Patent Pending.

Especificaciones

You are viewing: GM2010 Cambiar Configuración

Certificado de Análisis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Condiciones de Almacenaje

DD

Store at 4–50°C under noncondensing conditions and up to 75% humidity.

Patentes y Exclusiones

Patent Pending.
