TIM-3 Bioassay

Measure the Ability of Biologics to Block Immune Checkpoint Signals

The TIM-3 Bioassay is a bioluminescent reporter cell-based assay that overcomes the limitations of existing assays and can be used to measure the potency and stability of antibodies and other biologics targeting TIM-3. TIM-3 (CD366, HAVCR2) is an immune checkpoint receptor expressed on a subset of activated T cells, regulatory T cells (Tregs), macrophages and dendritic cells. TIM-3 has the capacity to inhibit or costimulate T-cell receptor (TCR) signaling in different in vitro systems.

The TIM-3 Bioassay consists of two cell lines:

TIM-3 Effector Cells: Human T cells genetically engineered to express human TIM-3 and a NanoLuc® luciferase reporter driven by T cell activation pathway-dependent response elements
TIM-3 Target Cells: MHCII-positive human cell line

When the two cell types are co-cultured, TIM-3 Target Cells provide low-level stimulation to the TIM-3 Effector Cells through the TCR. The combined stimulation of the TCR and TIM-3 induces promoter-mediated luciferase activation and luminescence. Adding a TIM-3 blocking antibody prevents TIM-3 signaling and reduces promoter-mediated luminescence.

The Control Ab, Anti-TIM-3, is a mouse anti-human TIM-3 antibody that shows blocking activity for TIM-3 with its ligands. It is intended for use as a control with the TIM-3 Bioassay, which can be used to measure the potency and stability of antibodies and other biologics designed to block the TIM-3 signaling.

Assay Components

The thaw-and-use format of the TIM-3 Bioassay (Cat.# JA2211, JA2215) offers convenience and minimizes variability. The assay consists of two cell lines: A genetically engineered cell line, TIM-3 Effector Cells, that expresses human TIM-3 and a NanoLuc® luciferase reporter driven by T cell activation pathway-dependent response elements; and TIM-3 Target MHCII-positive human cell line.

The assay is also available in CPM format (Cat.# JA2222) containing cryopreserved cells that can be thawed, propagated and banked for long-term use.

Workflow

Standardized Reagents Improve Results

Thaw-and-use format provides significant time and labor savings over traditional methods while reducing variability.
Kit includes all of the required reagents in standardized formats.
Easily amenable to high-throughput workflows.

Assay Principle

The TIM-3 Bioassay measures the potency and stability of antibodies and other biologics that block TIM-3 signaling.

TIM-3 Bioassay Representation — **Representation of the TIM-3 Bioassay.** The bioassay consists of two cell lines, TIM-3 Effector Cells and TIM-3 Target Cells. When cocultured, TIM-3 augments TCR pathway-activated luminescence of NanoLuc® luciferase. Adding anti-TIM-3 antibody blocks TIM-3 binding to ligands, including phosphatidylserine (PS), resulting in reduced TCR pathway activation, which can be detected in a dose-dependent manner by addition of Bio-Glo-NL™ Reagent and quantitation with a luminometer.

Assay Performance Data

Accuracy and precision are critical to bioassays and the development of biologics. This assay was developed and prequalified according to ICH guidelines for accuracy and precision. giving it the performance characteristics required for many applications of a bioassay used for antibody drug discovery research and development.

Accuracy: Measure of how close results are to a reference or "target" value.

IntraLab Precision: Measure of repeatability from multiple assays of the same homogeneous sample under the same operating conditions over a short time (same analyst; same lab; same day).

Intermediate Precision: Measure of repeatability of multiple assays of the same homogeneous sample with different analysts or equipment or on different days.

Linearity: Ability of the assay to provide measured values that are proportional to the concentration of the sample.

The TIM-3 Bioassay Shows Precision, Accuracy and Linearity.

Parameter	Results
Accuracy	Percent Expected Relative Potency	Percent Recovery
	50	102.6
	70	100.2
	100	97.7
	130	99.8
	150	107.7
Repeatability (% CV)	100% (Reference)	12.9
Intermediate Precision (% CV)		13.4
Linearity (r²)		0.904
Linearity (y = mx + b)		y = 1.078x – 3.277
A 50–150% theoretical potency series of Control Ab, Anti-TIM-3, was analyzed in triplicate in three independent experiments performed on three days by two analysts. Bio-Glo-NL™ Reagent was added and luminescence quantified using the GloMax® Discover System. Data were analyzed and relative potencies calculated after parallelism determination using JMP® software. Data were generated using thaw-and-use cells.

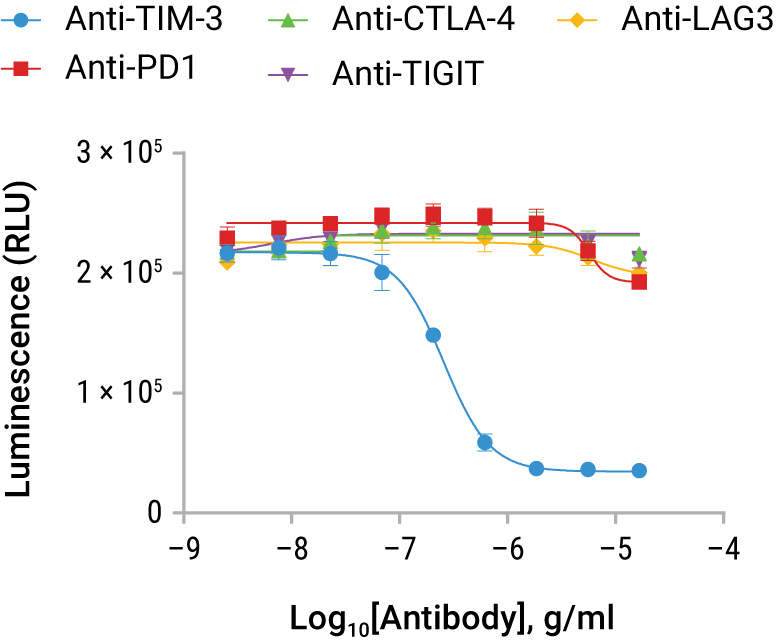

TIM-3 Bioassay MOA and Biologics Specificity — **The TIM-3 Bioassay reflects the mechanism of action (MOA) and specificity of biologics designed to block TIM-3 signaling.** TIM-3 Effector Cells were incubated with TIM-3 Target Cells in the presence of serial titrations of blocking Abs as indicated: Control Ab, Anti-TIM-3 (Cat.# K1210), anti-LAG-3 (Cat.# K1150), anti-PD-1 (nivolumab), anti-CTLA-4 (ipilimumab) or anti-TIGIT blocking antibodies. After a 20-hour induction, Bio-Glo-NL™ Reagent was added and luminescence quantified using the GloMax® Discover System. Data were fitted to a four-parameter logistic curve using GraphPad Prism® software. Data were generated using thaw-and-use cells.

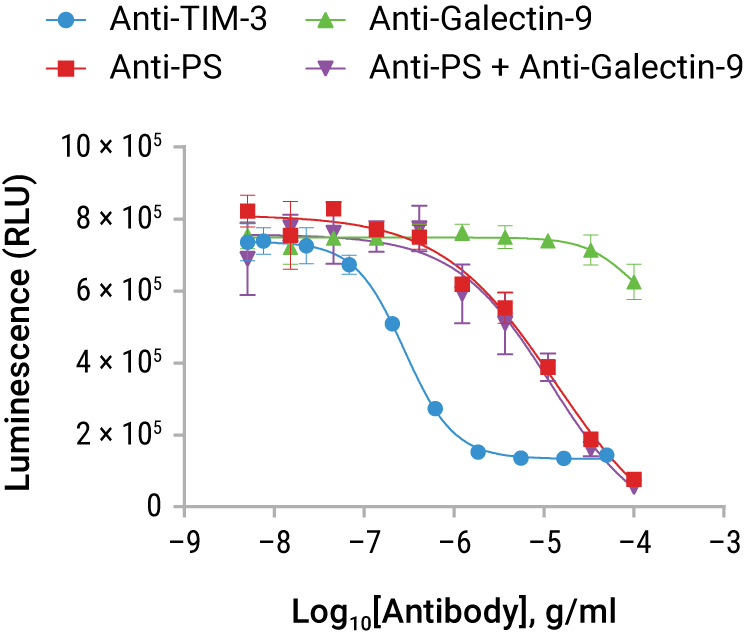

TIM-3 Bioassay Depends on Phosphatidylserine — **TIM-3 Bioassay is dependent on PS but not galectin-9.** The TIM-3 Bioassay was performed using Control Ab, Anti-TIM-3 (Cat.# K1210), or commercial antibodies against PS (Clone 1H6) and galectin-9 (Clone 9M1-3). After a 20-hour induction, Bio-Glo-NL™ Reagent was added and luminescence quantified using the GloMax® Discover System. Data were fitted to a four-parameter logistic curve using GraphPad Prism® software. Data were generated using thaw-and-use cells. Blockade of PS resulted in suppression of reporter activity similar to that seen with anti-TIM-3, while blockade of galectin-9 showed little effect, alone or in combination with anti-PS.

TIM-3 Bioassay is available in 1X and 5X sizes.
Control Ab, Anti-TIM-3, is available separately (Cat.# K1210).
TIM-3 Bioassay is also available in CPM format (Cat.# JA2222).
