BenchTop DNA Markers: A Convenient Option for Both Traditional Agarose and Precast Gel Systems

Abstract

In this study, we analyzed the performance of five BenchTop DNA Markers in both traditional, poured agarose gels and the precast eGel® System from Invitrogen. All five BenchTop DNA Markers are compatible with both systems, offering researchers flexibility and convenience in the use of these molecular weight markers.

Introduction

Gel electrophoresis has been used for decades to determine the molecular length of nucleic acid fragments. Prior to the discovery that DNA fragments could be separated by size via gel electrophoresis, scientists used methods like sucrose density gradients to determine the fragment lengths of DNA in their sample. In 1968, Takahashi et al.  reported that DNA fragments from adenovirus could be separated by molecular length by agarose gel electrophoresis ⁽¹⁾ .  In 1969, the same group showed that the relative length of linear DNA could be reproducibly assessed by electrophoresis ⁽²⁾ .

Once gel electrophoresis became widely accepted, researchers typically poured their own agarose gels, dissolving and melting agarose into buffer and allowing it to solidify in a glass or plastic form. Commercially available DNA ladders, or markers, aided scientists in accurately sizing their DNA fragments. These markers  were frozen fragments of DNA, and for use on agarose gels, required the addition of  a loading dye prior to loading into the gel.

Many scientists now have turned to precast, ready-to-use gels to shorten their DNA-based workflow. DNA markers also have evolved, with options for a variety of fragment sizes, premixed loading dye, and stability at room temperature.

The BenchTop DNA Markers from Promega offer a convenient and easy means to determine the size DNA fragments on agarose gels. These DNA markers are supplied in a stabilizing solution of 1X Blue/Orange Loading Dye, so there is no need to add a separate loading dye. The BenchTop DNA Markers also are stable at room temperature (22–25°C), eliminating the need to thaw the markers prior to use.

We have evaluated the performance of the Promega BenchTop DNA Markers in the Invitrogen eGel® System and have determined that they are compatible, offering researchers increased flexibility in their use.

Materials and Methods

Methods

Ladder/Marker Preparation: Each BenchTop DNA Ladder or Marker was mixed with water to a final volume of 20µl (Table 1).

Gel analysis: A volume of 20µl of prepared ladder or marker was added to wells of various agarose gels, with 20µl of water loaded in "empty" wells. All gels were run at 60 volts for approximately 30 minutes.

Results

The Promega BenchTop 1kb DNA ladder was separated on both a 0.8% eGel® and 0.8% standard agarose gel (Figure 1). The ladder was run in duplicate and visualized with ethidium bromide. All known molecular weight bands can be observed on both gel types.

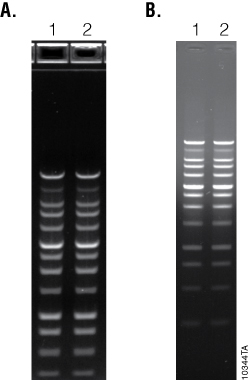

Figure 1. Comparison of the BenchTop 1kb Ladder run in 0.8% precast eGel® or 0.8% standard agarose.

The Promega BenchTop 1kb DNA Ladder is compatible with either 0.8% precast eGel® agarose gels (Panel A) or 0.8% standard agarose gels (Panel B).

The Promega BenchTop 100bp DNA Ladder along with three other BenchTop markers from Promega were separated on both a 2% eGel® and a 2% standard agarose gel (Figure 2). The ladder was run in duplicate and visualized with ethidium bromide. All known molecular weight bands can be observed on both gel types.

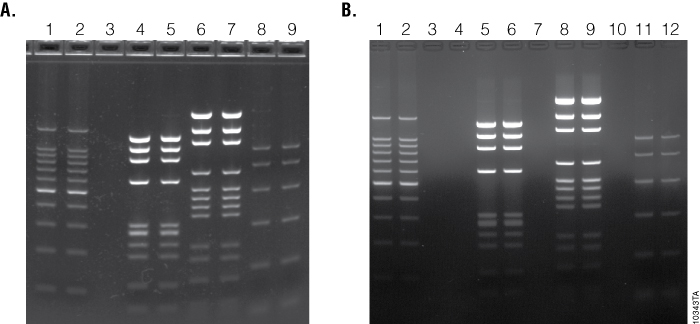

Figure 2. Promega BenchTop Markers and Ladders in 2.0% precast and agarose gels.

The Promega BenchTop 100bp DNA Ladder (Panel A, lanes 1 and 2; Panel B, lanes 1and 2), BenchTop PhiX174 DNA/HaeIII Markers (Panel A, lanes 4 and 5; Panel B, lanes 5 and 6), BenchTop pGEM® DNA Markers (Panel A, lanes 6 and 7; Panel B, lanes 8 and 9) and the BenchTop PCR Markers (Panel A, lanes 8 and 9; Panel B, lanes 11 and 12) all are compatible with either precast eGel® Systems (Panel A) or traditional agarose gels (Panel B).

Summary

Promega BenchTop DNA Markers are compatible with the eGel® System from Invitrogen. The direct-loading capability, coupled with room temperature stability and precast gel compatibility make the BenchTop DNA Markers a convenient and reliable means to accurately determine the size of DNA fragments on an agarose gel.

Related Products

• BenchTop pGEM® DNA Markers

Related Resources

• Molecular Cloning Guide

Article References

1. Takahashi, M. et al. (1968) Separation of adenovirus DNAs of different molecular length by agarose-gel electrophoresis. Biken J. II, 67.
2. Takahashi, M. et al. (1969) Estimation of relative molecular length of DNA by electrophoresis in agarose gel. Biochim. Biophys. Acta. 174, 183–7.
