Bone DNA Extraction Kit

dc6051-bone-dna-extraction-kit
View information on global supply logistics
customize-this-small

Rapidly Process Bone and Teeth Samples

  • Quick preprocessing of bone powder using Demineralization Buffer
  • Compatible with manual and Maxwell® DNA IQ™ chemistry
  • Yields DNA free of inhibitors and compatible with downstream amplification reactions
  • Note: The Bone DNA Extraction Kit (Cat.# DC6051) replaces the custom version of the Bone DNA Extraction Kit (Cat.# AX6780). No changes have been made to the product composition, and therefore, no performance changes are expected during the transition of the product from the custom to catalog version.

Size

Catalog number selected: DC6051

$ 675.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Bone DNA Extraction Kit
100 preps
$ 675.00
Your price: Log in

Rapidly Process Challenging Skeletal Remains

In certain cases involving missing persons, mass disasters and anthropological excavations, bone and teeth are often the only sample types available for identification. Further, these samples are often subjected to environmental damage, and co-extraction of environmental inhibitors during purification limits their usability in STR typing experiments. Purification of DNA free of inhibitors is a crucial first step for obtaining a usable profile from these samples.

A short preprocessing protocol followed by purification of DNA using DNA IQ™ chemistry yields inhibitor-free DNA compatible with PowerQuant® or Plexor® HY Systems for human and male DNA quantification. This DNA can be used with the PowerPlex® STR Systems to generate an STR profile.

The article A Rapid and Efficient Method for DNA Extraction from Bone Powder demonstrates the use of Demineralization Buffer and subsequent purification of DNA using the Maxwell® FSC System with aged bone samples.

Extraction of DNA from challenging bone samples.

Extraction of DNA from challenging bone samples. Femur bone samples dated from 1939–1945 (World War II) and 1870–1880 (Deadwood) were used with the Bone DNA Extraction Kit, Custom, followed by purification using DNA IQ™ chemistry on the Maxwell® Instrument. Autosomal DNA concentration, as determined by PowerQuant® System, was plotted as vertical bars. The normalized DNA or maximum template amount was used for amplification using the PowerPlex® Fusion System, and the number of alleles detected are shown.

ForensicGrade

Promega forensic products are manufactured in alignment with the ISO 18385 standard.This standard ensures minimal risk of human DNA contamination for products used to collect, store and analyze biological materials for forensic purposes. Learn more.

Bone DNA Extraction Method Overview

Bone DNA exraction method schematic
Bone DNA extraction method workflow

In a 1.5ml microcentrifuge tube, 400µl of preprocessing buffer is added to bone powder and incubated at 56ºC for 2.5 hours on a shaker set at 1000rpm. The tube is then centrifuged for 5 minutes at 13,000 × g, and the supernatant is transferred to a new 1.5ml microcentrifuge tube containing Lysis Buffer with a reducing agent. At this point, the preprocessed sample is ready for purification using the DNA IQ™ manual or DNA IQ™ Maxwell® method. The 1.5ml microcentrifuge tube with the undigested bone powder pellets can be discarded. Following the purification protocol, DNA can be eluted in 50µl of elution buffer. The resultant DNA can be quantified using the PowerQuant® System and amplified using the PowerPlex® Systems to generate an STR profile.

Integration of the Bone DNA Extraction Kit into a laboratory's workflow offers a rapid, cost-effective means to extract DNA with minimal hands-on time from precious bone samples.

Ideal for STR Amplification or Massively Parallel Sequencing Workflows

Due to the advantages that massively parallel sequencing (MPS) offers when working with challenging samples, numerous casework laboratories have adopted MPS as a technique when typical STR amplification fails to yield a usable profile. DNA purified with the Bone DNA Extraction Kit can be used in MPS applications. A workflow is outlined below as an example.

Twenty-five-year-old tooth samples processed using the Bone DNA Extraction Kit.

Twenty-five-year-old tooth samples from siblings were processed using the Bone DNA Extraction Kit and Maxwell® FSC DNA IQ™ Casework Kit. The extracted DNA was subsequently used in a massively parallel sequencing application as outlined above. Results from the PowerQuant® quantitation assay and library coverage details are shown for duplicates of the two samples. Sequencing results yielded 13 variant calls from each sibling sample that were concordant with each other and were assigned to the H2c haplogroup. Sequencing was performed with the prototype version of the PowerSeq® Whole Mito System.

Specifications

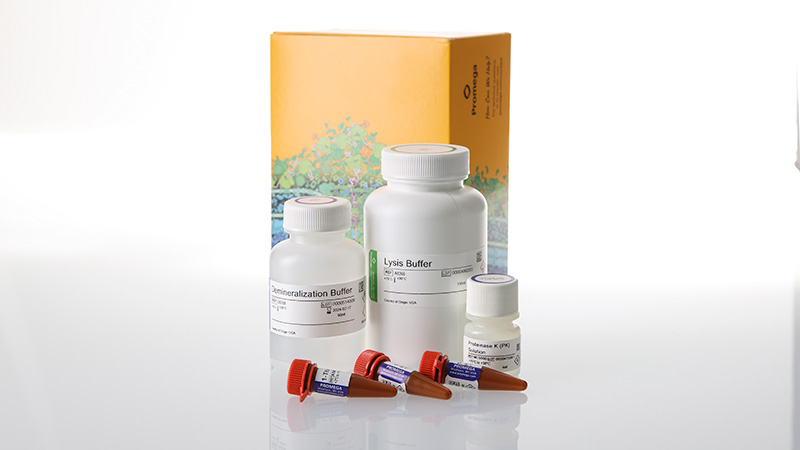

What's in the box?

Item Part # Size Available Separately

Demineralization Buffer

D678A 1 × 50ml

Proteinase K (PK) Solution

MC500B 1 × 4ml View Product

1-Thioglycerol

A208B 1 × 900μl

Lysis Buffer

A826B 1 × 150ml View Product

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions
