PowerPlex® Matrix Standards

8C Matrix Standard
DG4900_PowerPlex--6C-Matrix-Standard--5-preps_3
DG4850_PowerPlex--5C-Matrix-Standard--5-preps_3
DG4800_PowerPlex--4C-Matrix-Standard--5-preps_3
8C Matrix Standard
View information on global supply logistics
customize-this-small

DNA Fragments Labeled with Fluorescent Dyes for Use with PowerPlex® Systems

  • 8C Matrix Standards are labeled with: FL-8C, JOE-8C, AQA-8C, TMR-8C, CXR-8C,TOM-8C, WEN-8C and CCO-8C
  • 6C Matrix Standards are labeled with: FL-6C, JOE-6C, TMR-6C, CXR-6C, TOM-6C and WEN
  • 5C Matrix Standards are labeled with: Fluorescein, JOE, TMR-ET, CXR-ET and WEN
  • 4C Matrix Standards are labeled with: Fluorescein, JOE, TMR and CXR

Choose a product

Size

Catalog number selected: DG4800

$ 169.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product can be added to Helix

This product is available through the Promega Helix onsite stocking program. We offer numerous convenient solutions to meet your lab's needs.

Learn more about the Helix Collection »

This product can be added to Helix

This product is available through the Promega Helix onsite stocking program. We offer numerous convenient solutions to meet your lab's needs.

Learn more about the Helix Collection »

This product can be added to Helix

This product is available through the Promega Helix onsite stocking program. We offer numerous convenient solutions to meet your lab's needs.

Learn more about the Helix Collection »

This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
PowerPlex® Matrix Standards
4C Matrix Standard/5 preps
$ 169.00
Your price: Log in
Change Configuration

Use of Matrix Standards

Proper generation of a spectral calibration file is critical to evaluate multicolor systems. Once generated, the spectral calibration file is applied during sample detection to calculate and compensate for spectral overlap between different fluorescent dye colors.

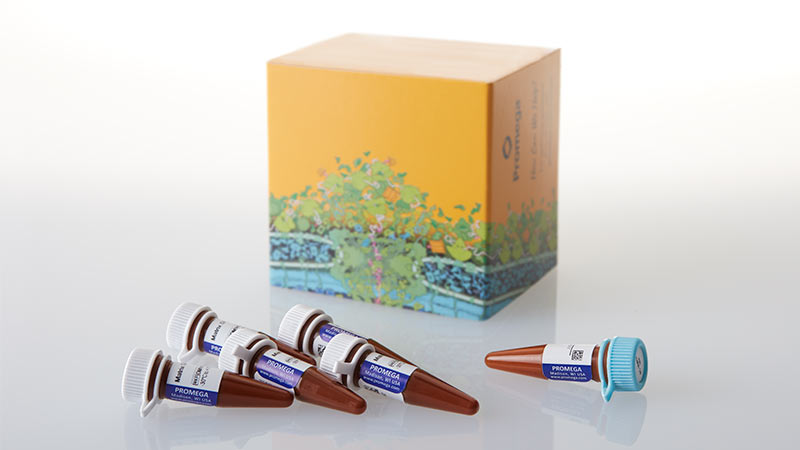

PowerPlex® 8C Matrix Standards

The PowerPlex® 8C Matrix Standard (Cat.# DG5010) allows the PowerPlex® 35GY and PowerPlex® 18E Systems to be analyzed on the Spectrum and Spectrum Compact CE Systems.

The PowerPlex® 8C Matrix Standard consists of DNA fragments labeled with eight different fluorescent dyes in one tube: FL-8C, JOE-8C, AQA-8C, TMR-8C, CXR-8C,TOM-8C, WEN-8C and CCO-8C.

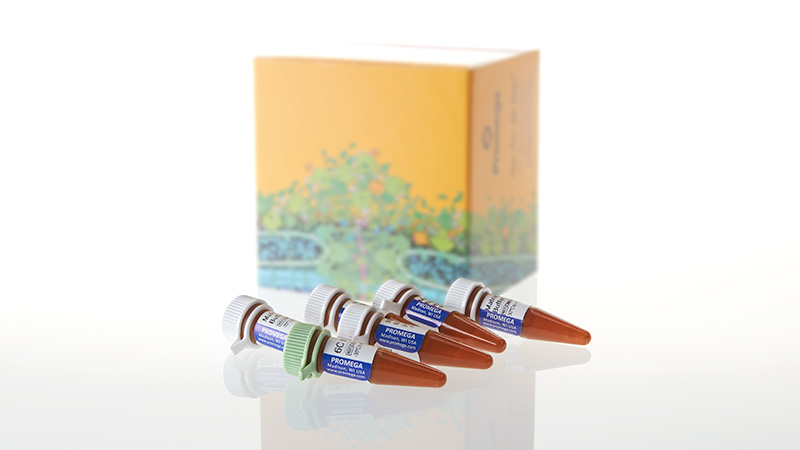

PowerPlex® 6C Matrix Standards

The PowerPlex® 6C Matrix Standard (Cat.# DG4900) allows the PowerPlex® Fusion 6C System to be analyzed on the Spectrum and Spectrum Compact CE Systems and the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.

The PowerPlex® 6C Matrix Standard consists of DNA fragments labeled with six different fluorescent dyes in one tube: FL-6C, JOE-6C, TMR-6C, CXR-6C, TOM-6C and WEN.

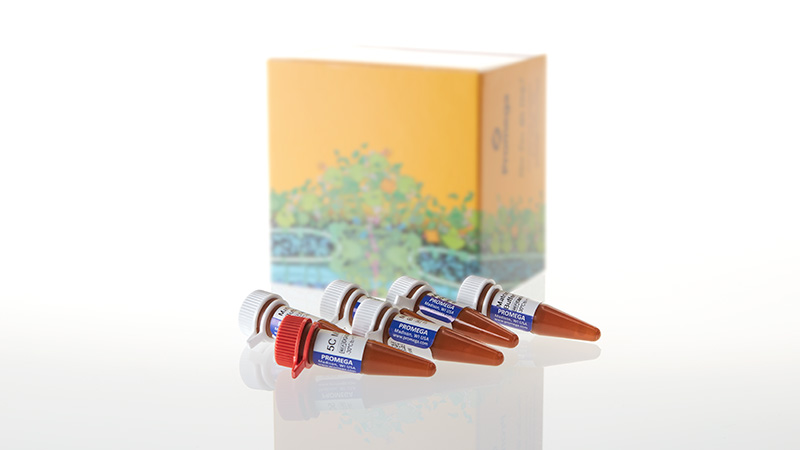

PowerPlex® 5C Matrix Standards

The PowerPlex® 5C Matrix Standard (Cat.# DG4850) allows the following systems to be analyzed on the Spectrum and Spectrum Compact CE Systems and the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers:

  • PowerPlex® ESX
  • PowerPlex® ESI
  • PowerPlex® 18D
  • PowerPlex® 21
  • PowerPlex® Y23
  • PowerPlex® Fusion

The PowerPlex® 5C Matrix Standard contains matrix fragments labeled with five fluorescent dyes: Fluorescein, JOE, TMR-ET, CXR-ET and WEN.

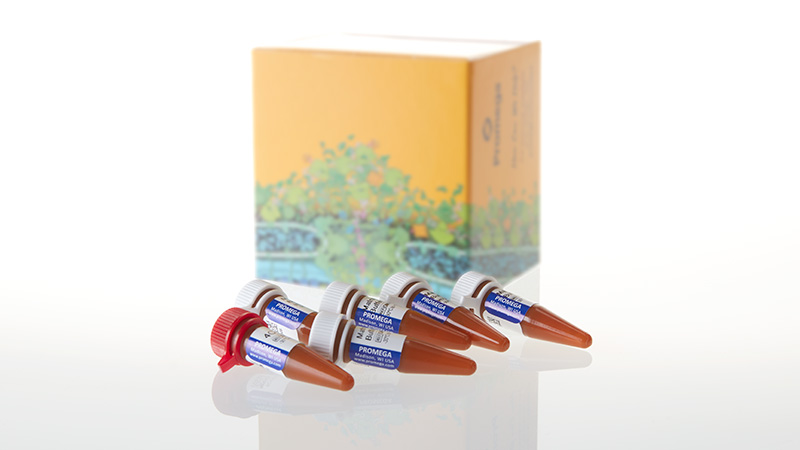

PowerPlex® 4C Matrix Standards

The PowerPlex® 4C Matrix Standard (Cat.# DG4800) allows the following systems to be analyzed on the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers:

  • PowerPlex® 16
  • PowerPlex® 16 HS
  • PowerPlex® CS7
  • MSI Analysis
  • GenePrint® 10

The PowerPlex® 4C Matrix Standard contains matrix fragments labeled with four fluorescent dyes: Fluorescein, JOE, TMR and CXR.

Protocols

Complete Protocol

Quick Protocols

Specifications

You are viewing: DG4800 Change Configuration

What's in the box?

Item Part # Size

4C Matrix Mix

 DG431A 1 × 150μl

Matrix Dilution Buffer

 DM145A 5 × 200μl

SDS

Search for SDS

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

EE

Specifications

You are viewing: DG4850 Change Configuration

What's in the box?

Item Part # Size

5C Matrix Mix

 DG430A 1 × 150μl

Matrix Dilution Buffer

 DM145A 5 × 200μl

SDS

Search for SDS

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

EE

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Specifications

You are viewing: DG4900 Change Configuration

What's in the box?

Item Part # Size

6C Matrix Mix

 DG429A 1 × 150μl

Matrix Dilution Buffer

 DM145A 5 × 200μl

SDS

Search for SDS

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

EE

Patents and Disclaimers

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-6C, CXR-6C, TOM-6C and WEN-6C dyes are proprietary.

Specifications

You are viewing: DG5010 Change Configuration

What's in the box?

Item Part # Size

8C Matrix Mix

 DG854A 1 × 150μl

Matrix Dilution Buffer

 DM145A 5 × 200μl

SDS

Search for SDS

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Storage Conditions

CC

Frequently Used With

PowerPlex® 35GY System

First 8-dye STR multiplex; allows co-amplification and fluorescent detection of the 20 CODIS core loci plus Amelogenin and DYS391 for sex determination.

DC3520, DG5010, DM1551, DG8571

PowerPlex® 18E System

First 8-color STR multiplex for European forensic laboratories; allows amplification and detection of all 16 ENFSI-recommended loci plus Amelogenin and DYS391 for sex determination.

DC3620, DG5010, DM1601, DG8571

PowerPlex® Fusion 6C System

6-color co-amplification and detection of 27 loci.

DC2705, DC2720, DC2780

PowerPlex® 16 HS System

Multiplex STR system for use in DNA typing.

DC2101, DC2100

PowerPlex® 21 System

Multiplex STR system for human identification.

DC8902, DC8942
