Maxwell® CSC Instrument

Maintain Electronic Records Easily

Maxwell® CSC makes maintaining electronic records easy with complete tracking of every run and reports that are portable and LIMS-compatible. The instrument supports 21 CFR Part 11 requirements for electronic records (user authentication and authorization, data integrity and protection, electronic signatures and audit trails) when used with the appropriate laboratory workflow.

Product is currently only available in Austria, Belgium, Canada, China, Croatia, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Korea, Latvia, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom and United States.

Fewer Cross-Contamination Worries with a Paramagnetic Particle Mover

The Maxwell® CSC is a magnetic particle mover, not a liquid handler. It delivers minimal risk of cross-contamination because no liquid handling or splashing happens during processing of the samples.

Maxwell® CSC Makes it Easy to Set Up and Run Samples

Dual Mode Functionality

Extract high-quality DNA/RNA for downstream diagnostic amplification assays in IVD mode or extract samples for a variety of research applications in RUO mode.

Track Samples Easily

The integrated bar code reader records important information such as sample ID, kit ID and kit lot number.

Easy to Use

The intuitive touch screen interface lets you easily set up your purification run.

Reduce Processing Time

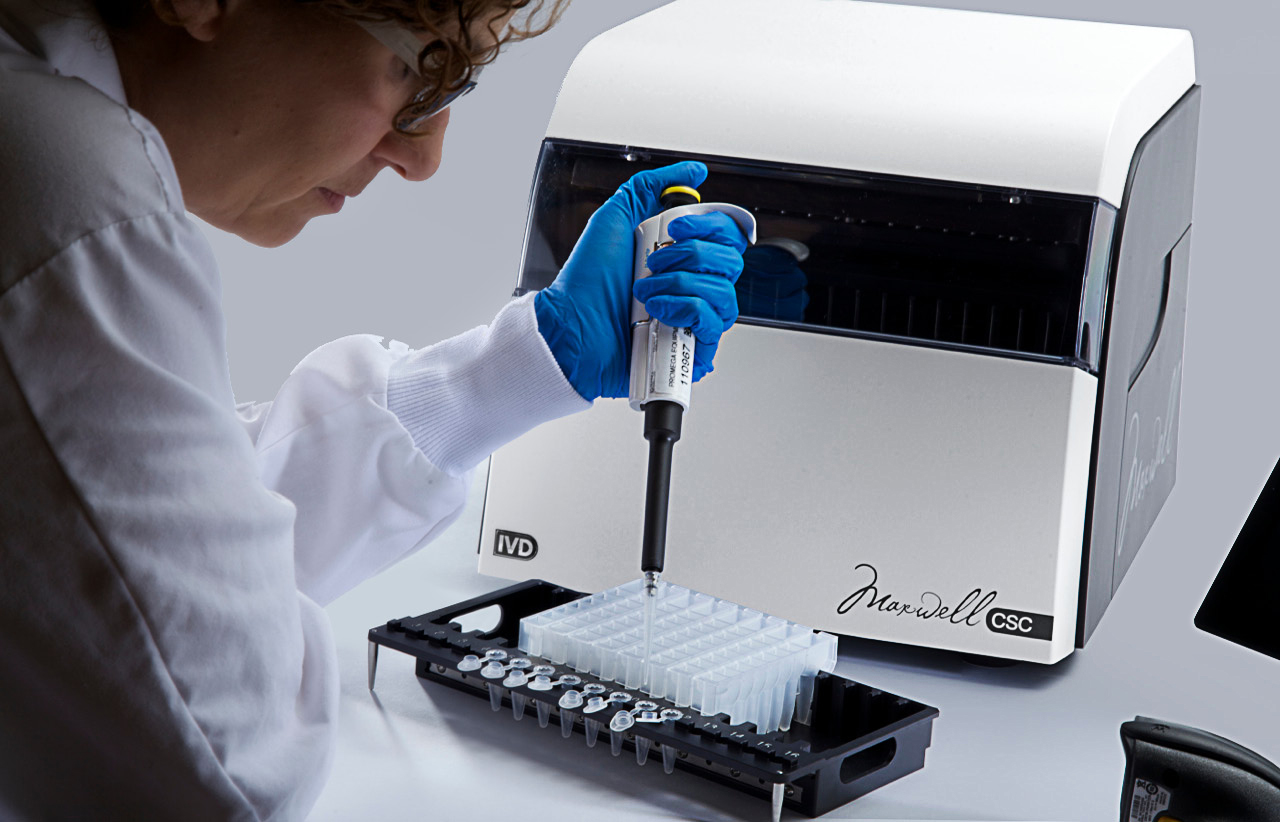

Place prepared cartridges in the Maxwell® CSC. Press “Start” to purify 1–16 samples using the selected kit’s preprogrammed method.

Works with Multiple Sample Types

To use a purification kit, you will need to load the appropriate method onto your Maxwell® CSC Instrument.

Maxwell® CSC Methods

Instrument Specifications

Processing Time: 40–60 minutes (depending on sample type and method)

Number of Samples: Up to 16

Weight: 24.2lb (11kg)

Dimensions: 13W × 13.6D × 11.8H inches (330.2 × 345.2 × 299.7mm)

Power Requirements: 95–240VAC, 50–60Hz, 1.0A

Fuse: 250VAC, 2.6A, time-lag fuse (AC250V, T2.5AL, 5 × 20mm)

UV Bulb: Average lifetime approximately 6,000 hours, length 135.9mm, diameter 16mm, 4W, 0.17A current, 29V, Spectral Peak F 253.7, UV output 0.9W

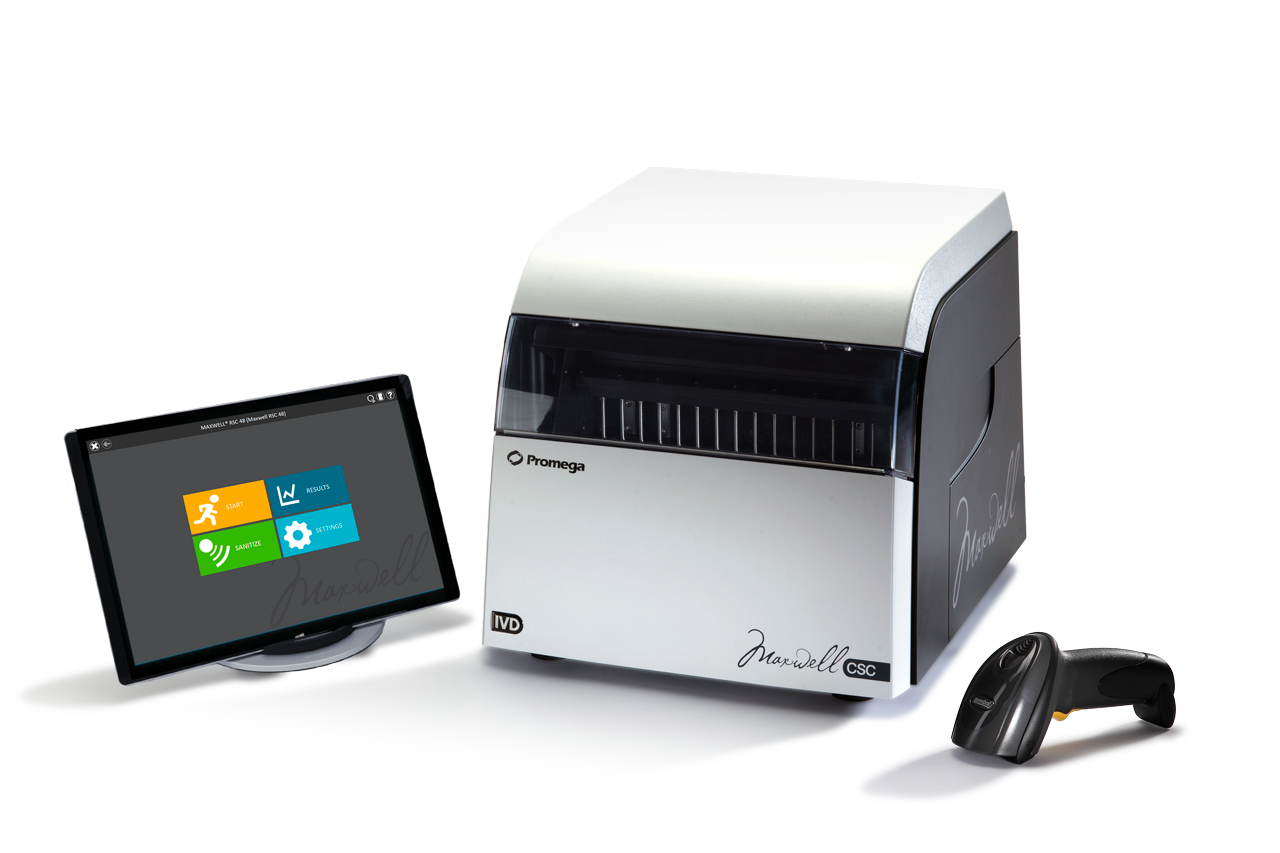

Instrument Standard Components

A. Maxwell® CSC Instrument

B. Tablet PC preloaded with Maxwell® CSC User Interface

C. USB cable for connection of the Maxwell® CSC Instrument to the Tablet PC

D. Power Cable for Maxwell® CSC Instrument

E. Power Cords for Tablet PC

F. Maxwell® CSC Deck Tray

G. Bar Code Reader

H. Tablet PC Holder

I. USB cable - Maxwell® CSC Instrument to the Tablet PC

Software CD for the Maxwell® CSC Instrument

Accessories Available Separately

Additional deck trays and plungers are available for purchase separately.

Order Here

Protocol Available for Download

This protocol is available in additional languages.

Find Your Language

Service and Support

One Call Supports It All

Promega supplies both the reagents and the instrument, so one call to Promega answers any questions you may have about assay chemistries or instrument performance.

Contact Technical Services

Ensure Minimal Instrument Downtime

Field Support and Loaner Programs
Service Packages
IQ and OQ Packages

Warranty and Service Agreements

Backed by a one-year warranty.
Additional warranty and service agreements are available.
For more information contact Promega Technical Services.

Instrument Service and Support Instrument Registration

Protocols

Complete Protocol

Maxwell® CSC Instrument Operating ManualPDF (10895 KB) – English

Maxwell® CSC RUO Mode Software ManualPDF (7741 KB) – English

Portal Access Software Technical ManualPDF (6435 KB) – English

Video Protocols

SDS

Search for SDS

Certificate of Analysis

Search by lot number

Use Restrictions

For In Vitro Diagnostic Use. This product is only available in certain countries.

Storage Conditions

Patents and Disclaimers

U.S. Pat. Nos. 7,721,947 and 7,891,549, European Pat. No. 2033144 and Japanese Pat. Nos. 5519276 and 5654519.
