Promoter-Driven Control NanoLuc® Luciferase Vectors

customize-this-small
View information on global supply logistics

Vectors Containing NanoLuc® Luciferase Expressed from Mammalian Promoters

  • Multiple promoter options (CMV, TK and PGK) are available to obtain appropriate levels of the control reporter in your experimental system
  • Co-transfect with experimental firefly luciferase vectors as normalization control
  • Measure signal using the Nano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay System

Choose a promoter

Size

Catalog number selected: N1441

$ 450.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Promoter-Driven Control NanoLuc® Luciferase Vectors
PGK/20µg
$ 450.00
Your price: Log in
Change Configuration

The pNL1.1.CMV[Nluc/CMV], pNL1.1.PGK[Nluc/PGK] and pNL1.1.TK[Nluc/TK] Vectors are promoter-driven NanoLuc® (Nluc) control vectors that can be co-transfected with experimental firefly luciferase vectors when using the Nano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay System.

NanoLuc® luciferase is a small (19.1kDa), stable reporter enzyme that can be up to 100-fold more sensitive than the flash-type Renilla signal in the DLR™ Assay and more than 3,000-fold more sensitive than the Renilla signal in the Dual-Glo® Assay. The increased brightness of the NanoLuc® Luciferase means you use less control DNA, minimizing assay artifacts and providing a stable control signal for normalization of the experimental Fluc reporter. Firefly luciferase, which is derived from Photinus pyralis, can be used be used as the control when NanoLuc® Luciferase is the experimental reporter. The vectors are engineered with minimal consensus transcription factor-binding sites to reduce anomalous expression.

The Nano-Glo® Dual-Luciferase® Reporter (NanoDLR™) Assay System uses the same protocol as the popular Dual-Glo® Luciferase Assay, with improved sensitivity, performance and convenience. Control vectors are ready to substitute into your assay. In addition, the NanoDLR™ Assay is compatible with multiple experimental configurations. This flexibility means you can use either Fluc or Nluc as the experimental reporter and normalize with either the Nluc or Fluc control, respectively.

About NanoLuc® Luciferase and the pNL Vectors

For use as a genetic reporter, multiple forms of NanoLuc® luciferase have been configured to meet differing experimental objectives. Unfused Nluc offers maximal light output and sensitivity, and NanoLuc®-PEST (NlucP) closely couples protein expression to changes in transcriptional activity and increased signal-to background ratios. When a secreted reporter is preferred, there is NanoLuc® luciferase fused to an N-terminal secretion signal (secNluc). Luminescence is linearly proportional to the amount of NanoLuc® protein over a 1,000,000-fold concentration range, with a signal half-life ≥2 hours when detected with Nano-Glo® Luciferase Assay Reagent.

NanoLuc® luciferase possesses a number of physical properties that make it an excellent reporter protein:

  • very small, monomeric enzyme (171 amino acids; 513bp)
  • high thermal stability (Tm = 60°C)
  • active over a broad pH range (pH 6–8)
  • no post-translational modifications or disulfide bonds
  • uniform distribution in cells
  • emission spectrum well suited for bioluminescence resonance energy transfer (BRET; λmax = 465nM).

NanoLuc® luciferase is made available in a variety of plasmids designed for use in reporter gene assays of transcriptional control and with each of the NanoLuc® forms (unfused Nluc, PEST destabilized NlucP, and secreted secNluc). The different pNL variations are designed for the following:

  • pNL1: cloning of a known or putative promoter region
  • pNL2: cloning of a known or putative promoter region and establishment of a stable cell line through Hygromycin selection
  • pNL3: cloning of a binding site or response element not in need of a basic promoter (such as are present in the pNL3.2.NF-κB-RE vector)
  • Control plasmids for the unfused, PEST-destabilized and secreted Nluc forms also are available.

The pNL vector series uses a pGL4-based backbone for easy sequence transfer from existing plasmids. This backbone design also reduces anomalous results by removing many transcription factor binding sites and other potential regulatory elements. The Nluc gene variations are codon optimized and have had many potential regulatory elements or other undesirable features removed (such as common restriction enzyme sites).

Relative luminescence for firefly and NanoLuc® luciferases expressed from constitutive promoters in multiple cell types.

Relative luminescence for firefly and NanoLuc® luciferases expressed from constitutive promoters in multiple cell types.

Sequence Information

pNL1.1.CMV[Nluc/CMV] Vector GenBank® Accession Number JQ513379 and vector sequence text file.

pNL1.1.PGK[Nluc/PGK] Vector GenBank® Accession Number KM359770 and vector sequence text file.

pNL1.1.TK[Nluc/TK] Vector GenBank® Accession Number KM359774 and vector sequence text file.

Specifications

You are viewing: N1441 Change Configuration

What's in the box?

Item Part # Size

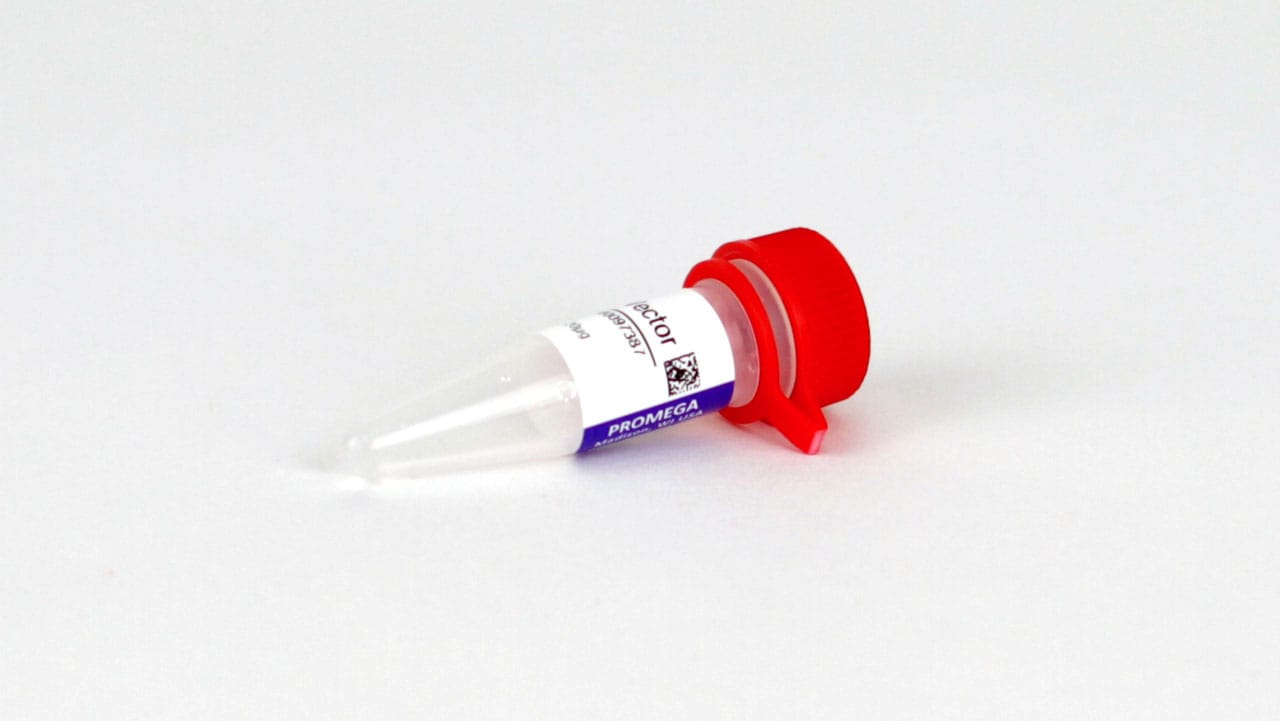

pNL1.1.PGK[Nluc/PGK] Vector N144A 1 × 20μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

Specifications

You are viewing: N1501 Change Configuration

What's in the box?

Item Part # Size

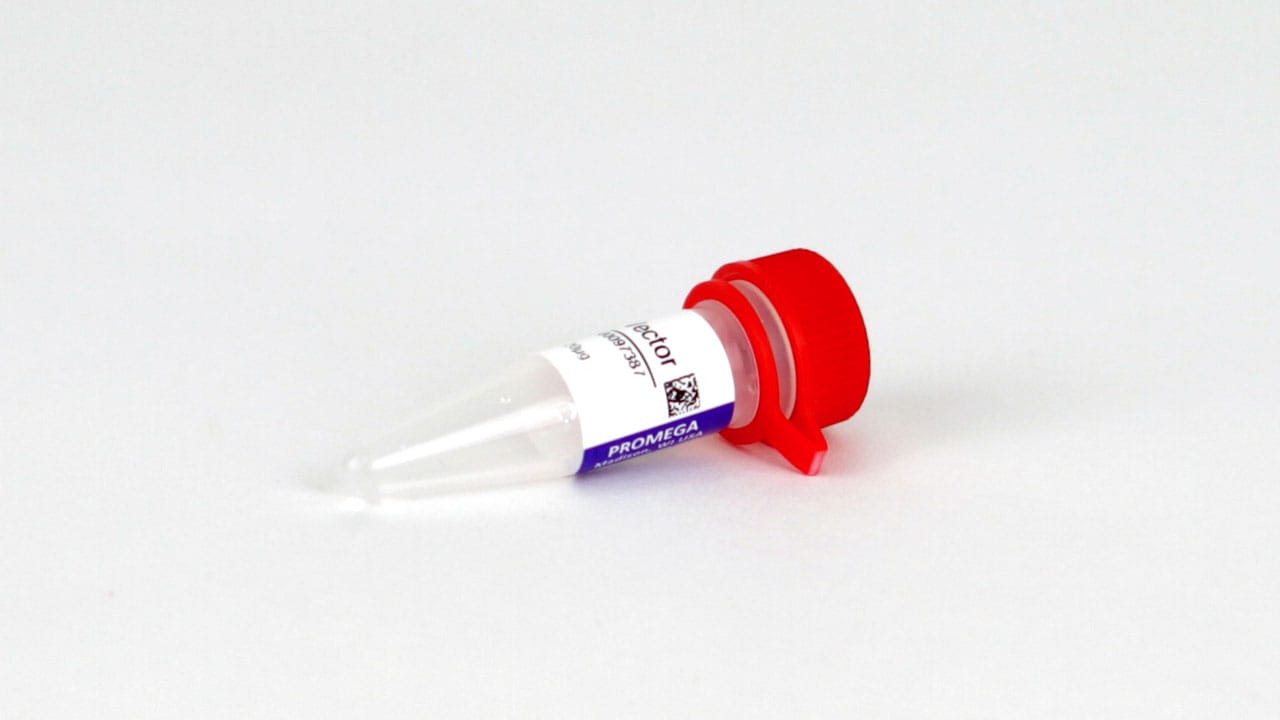

pNL1.1.TK[Nluc/TK] Vector N150A 1 × 20μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

Specifications

You are viewing: N1091 Change Configuration

What's in the box?

Item Part # Size
pNL1.1.CMV[Nluc/CMV] Vector N109A 1 × 20μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. Nos. 8,557,970, 8,669,103, 9,777,311, 9,840,730, 9,951,373, 10,233,485, 10,633,690, 10,774,364, 10,844,422, 11,365,436, 11,661,623, 11,667,950; European Pat. Nos. 2456864, 2635595, 2990478, 3181687, 3409764; Japanese Pat. Nos. 6038649, 6155424, 6227615, 6374420, 6539689; and other patents and patents pending.
