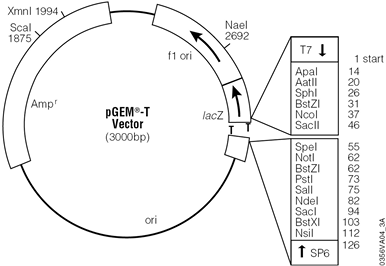

In the pGEM®-T Vector, T7 and SP6 RNA polymerase promoters flank a multiple cloning region within the α-peptide coding region for β-galactosidase. Insertional inactivation of the α-peptide allows recombinant clones to be directly identified by Blue/White Screening on indicator plates. The vector allows preparation of single-stranded DNA due to its f1 Origin of Replication.
The multiple cloning site is flanked by recognition sites for the restriction enzyme BstZI, allowing release of the insert by a single-enzyme digestion. Alternatively, a double digestion may be used to release the insert from the vector.
The pGEM®-T Vector System II contains JM109 Competent Cells in addition to all of the pGEM®-T Vector System I components.
References
-
Mezei, L.M. and Storts, D.R. (1994) In: PCR Technology: Current Innovations, Griffin, H.G. and Griffin, A.M., eds., CRC Press, Boca Raton, FL, 21.
- Robles, J. and Doers, M. (1994) Promega Notes 45, 19–20.
- Clark, J.M. (1988) Nucl. Acids Res. 16, 9677–86.
- Newton, C.R. and Graham, A. (1994) In: PCR, BIOS Scientific Publishers, Ltd., Oxford, UK, 13.
