Dedicated Detection Solutions for NanoBRET® Protein Interaction Assays

  • Measure protein interactions in live cells with full-length proteins
  • Use the standard reagent for single-time-point or <2-hour analysis; use the kinetic reagent for extended live-cell measurements
  • Increased signal and lower background compared to conventional BRET assays

Choose a product

Size

Catalog number selected: N1661

$ 438.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
NanoBRET® Nano-Glo® Detection Systems
Standard/200 assays
$ 438.00
Your price: Log in
Change Configuration

Detection Reagent for use with NanoBRET® Protein Interaction Assays

The NanoBRET® assay is a bioluminescence resonance energy transfer (BRET)-based assay that uses NanoLuc® Luciferase as the BRET energy donor and HaloTag® protein labeled with the HaloTag® NanoBRET® 618 fluorescent Ligand as the energy acceptor to measure the interaction of two binding partners in live cells.

The NanoBRET® Nano-Glo® Detection System provides the NanoBRET® Nano-Glo® Substrate used by NanoLuc® Luciferase to generate the donor signal and the HaloTag® NanoBRET® 618 Ligand for the fluorescent energy acceptor. The HaloTag® NanoBRET® 618 Ligand is added directly to the cells during plating, and the NanoBRET® Nano-Glo® Substrate is added to the sample just prior to measuring donor and acceptor emission. The NanoBRET® Nano-Glo® Kinetic Detection System has the Vivazine® substrate for use by the NanoLuc® luciferase donor, giving an extended signal for live-cell kinetic assays.

For more details on using the NanoBRET® assay for protein:protein interaction studies visit: NanoBRET® Technology for Protein Interactions. The NanoBRET® Nano-Glo® Detection Systems are compatible with a diverse set of prebuilt or custom NanoBRET® PPI Assays.

Note: The total number of assays will vary based on final well volume. For standard well volumes:
Cat.# N1661 and N2583 are sufficient for 200 assays in 96-well plates or 500 assays in 384-well plates.
Cat.# N1662 and N2584 are sufficient for 1,000 assays in 96-well plates or 2,500 assays in 384-well plates.
Cat.# N1663 and N2585 are sufficient for 10,000 assays in 96-well plates or 25,000 assays in 384-well plates.

NanoBRET® PPI Assay Principle

Energy Transfer from NanoLuc to HaloTag NanoBRET Ligand 12749TA-W-a
Depiction of energy transfer from a NanoLuc®-Protein A fusion (energy donor) to a fluorescently labeled HaloTag®-Protein B fusion (energy acceptor) upon interaction of Protein A and Protein B.
Donor and Acceptor Signal Wavelengths for NanoBRET
Spectral separation of the NanoLuc® emission (460nm) and the fluorescent HaloTag® NanoBRET® 618 Ligand emission (618nm), and calculation of the NanoBRET® ratio.

Simple Protocol Saves Time

12750MA-W

Example Protein Interaction Assay Data

The NanoBRET® Nano-Glo® Detection System provides live-cell analysis for single-time-point or short (<2 hours) kinetic assays.

12751MA-W-a

Activation of the EGFR/GRB2 interaction by EGF induction.

12751MA-W-b

Inhibition of the BRD4/Histone H3.3 interaction by JQ1.

The NanoBRET® Nano-Glo® Kinetic Detection System provides increased signal stability of the bioluminescent donor, enabling interaction kinetics to be assayed for multiple hours.

BRD4 ubiquitination kinetics

BRD4 ubiquitination kinetics following treatment with various PROTAC compounds.

Live-cell kinetic measurement of NanoLuc-KRAS 2B G12D / BRAF RBD-HaloTag interaction.

Dissociation kinetics of KRAS 2B G12D/BRAF RBD interaction following treatment with KRAS inhibitor.

Specifications

You are viewing: N1661 Change Configuration

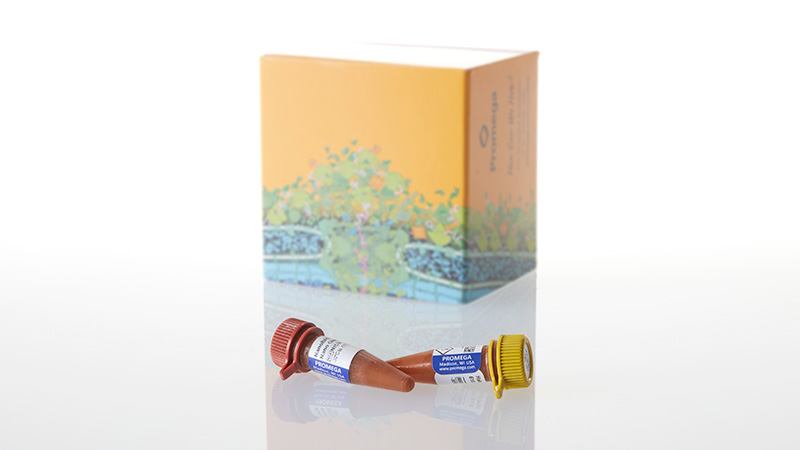

What's in the box?

Item Part # Size Available Separately

HaloTag® NanoBRET® 618 Ligand

G980A 1 × 20μl View Product

NanoBRET® Nano-Glo® Substrate

N157A 1 × 50μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only; no commercial use is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product, whether or not such product is resold for use in research. Researcher shall have no right to modify or otherwise create variations of the product. No other use or transfer of this product is authorized without the prior express written consent of Promega.

For uses of Nano-Glo®-branded reagents intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(i) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product; or
(ii) contact Promega to obtain a license for use of the product for energy transfer assays to energy acceptors not manufactured by Promega.

With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 7,867,726, 8,168,405 and 8,257,939 and other patents and patents pending.

Patent Pending.

Specifications

You are viewing: N1662 Change Configuration

What's in the box?

Item Part # Size Available Separately

HaloTag® NanoBRET® 618 Ligand

G980A 5 × 20μl View Product

NanoBRET® Nano-Glo® Substrate

N157A 5 × 50μl View Product

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only; no commercial use is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product, whether or not such product is resold for use in research. Researcher shall have no right to modify or otherwise create variations of the product. No other use or transfer of this product is authorized without the prior express written consent of Promega.

For uses of Nano-Glo®-branded reagents intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(i) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product; or
(ii) contact Promega to obtain a license for use of the product for energy transfer assays to energy acceptors not manufactured by Promega.

With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 7,867,726, 8,168,405 and 8,257,939 and other patents and patents pending.

Patent Pending.

Specifications

You are viewing: N1663 Change Configuration

What's in the box?

Item Part # Size Concentration Available Separately

HaloTag® NanoBRET® 618 Ligand

G980B 1 × 1ml 0.1mM View Product

NanoBRET® Nano-Glo® Substrate

N157B 2 × 1.25ml View Product

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researcher may use this product for research use only; no commercial use is allowed. Commercial use means any and all uses of this product by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product, whether or not such product is resold for use in research. Researcher shall have no right to modify or otherwise create variations of the product. No other use or transfer of this product is authorized without the prior express written consent of Promega.

For uses of Nano-Glo®-branded reagents intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(i) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product; or
(ii) contact Promega to obtain a license for use of the product for energy transfer assays to energy acceptors not manufactured by Promega.

With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 7,867,726, 8,168,405 and 8,257,939 and other patents and patents pending.

Patent Pending.

Specifications

You are viewing: N2583 Change Configuration

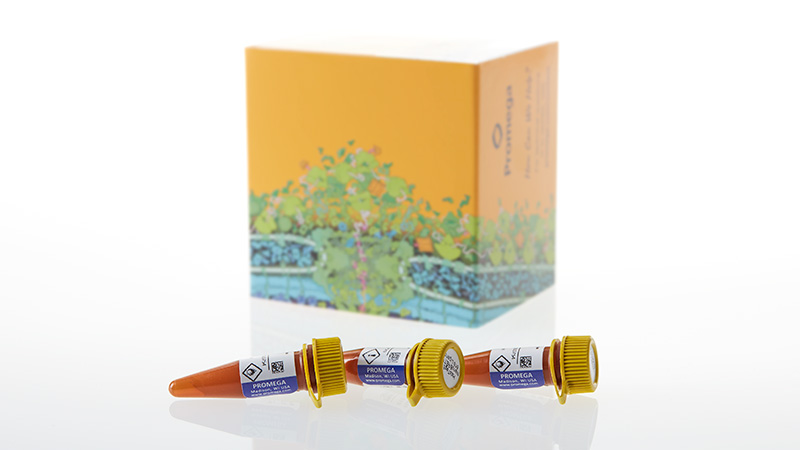

What's in the box?
