Spectrum Compact CE System Consumables
Plug-and-play prefilled consumables
- Individually packaged and installed
- Reduced consumable waste
- Managed via 2D bar code
Consumable Products
| Catalog No. | Product Name | Size | Price | Qty | |||
|---|---|---|---|---|---|---|---|
| CE2300 | Spectrum Compact Buffer | View Specifications | List Price: $ 225.00 Your Price: Log In | Add to Cart | |||
| CE2301 | Spectrum Compact Cathode Septa Mat | View Specifications | 10 each | List Price: $ 225.00 Your Price: Log In | Add to Cart | ||
| CE2302 | Spectrum Compact Cathode Retainer | View Specifications | 4 each | List Price: $ 112.00 Your Price: Log In | Add to Cart | ||
| CE2304 | Spectrum Compact Polymer4; use with software v.6138000-XX or v.6138200-XX | View Specifications | 4 × 64 wells | List Price: $ 282.00 Your Price: Log In | Add to Cart | ||
| CE2404 | Spectrum Compact Polymer4; use with software v.6138200-XX or v.6138800-XX | View Specifications | 4 × 96 wells | List Price: $ 268.00 Your Price: Log In | Add to Cart | ||
| CE2307 | Spectrum Compact Polymer7; use with software v.6138000-XX or v.6138200-XX | View Specifications | 4 × 64 wells | List Price: $ 282.00 Your Price: Log In | Add to Cart | ||
| CE2407 | Spectrum Compact Polymer7; use ONLY with software v.6138200-XX | View Specifications | 4 × 96 wells | List Price: $ 268.00 Your Price: Log In | Add to Cart | ||
| CE2507 | Spectrum Compact Polymer7; use ONLY with software v.6138800-XX | View Specifications | 4 × 96 wells | List Price: $ 268.00 Your Price: Log In | Add to Cart | ||
| CE2308 | Strip Septa Mat, 8-Well | View Specifications | 24 each | List Price: $ 163.00 Your Price: Log In | Add to Cart | ||
| CE2332 | Spectrum Compact Strip Base & Retainer, 32-Well | View Specifications | 4 each | List Price: $ 248.00 Your Price: Log In | Add to Cart | ||
| CE2340 | Spectrum Compact Capillary Cartridge, 4-Capillary 36cm | View Specifications | 1 each | List Price: $ 928.00 Your Price: Log In | Add to Cart | ||
| CE2399 | Capillary Preservation Buffer | View Specifications | 10ml | List Price: $ 84.00 Your Price: Log In | Add to Cart |
Early Access = This product is available under our Early Access program - Learn More
Catalog (FT) = This product is available under our Catalog (FT) program - Learn More
Spectrum Compact CE System Consumables
Spectrum Compact Buffer
- Prefilled, ready-to-use cartridges
- 2 each, anode and cathode cartridges
- Each cartridge is sufficient for 320 samples (80 injections)

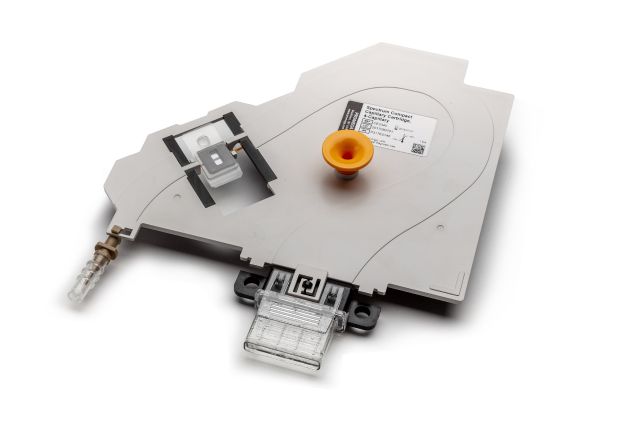

Spectrum Compact Capillary Cartridge
- 4-Capillary, 36cm
- Sufficient for 800 samples (200 injections) or 1200 samples (300 injections), depending on software and hardware installed on the instrument
- No hard-stops

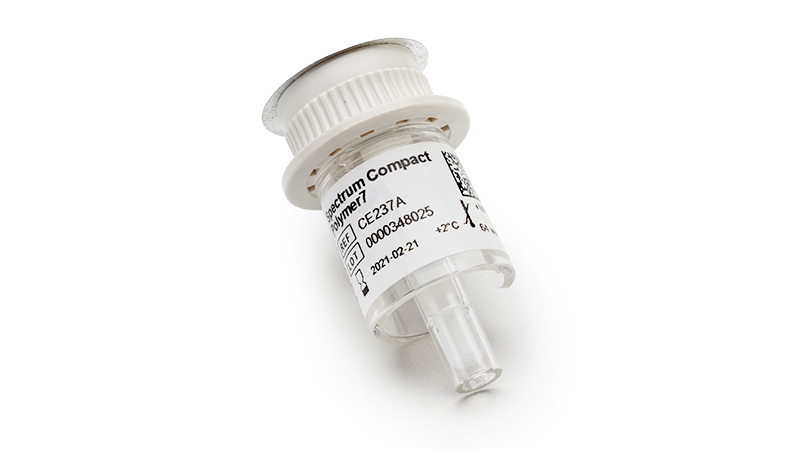

Spectrum Compact Polymer Cartridge
- Available with Polymer4 for fragment analysis or Polymer7 for Sanger sequencing
- Snaps into the polymer delivery unit in a single orientation
- Sufficient for 64 samples (16 injections) or 96 samples (24 injections), depending on software and hardware installed on the instrument

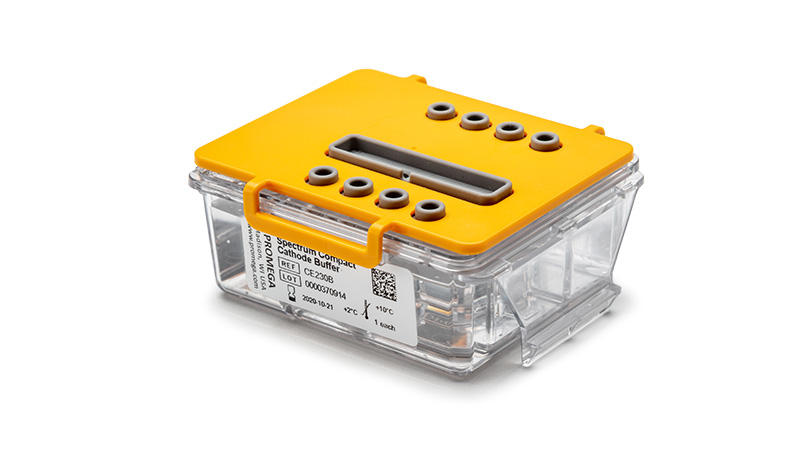

Spectrum Compact Cathode Septa Mat and Retainer
- Specific for the Spectrum Compact cathode buffer cartridge
Spectrum Compact Plate Base & Retainer, 32-Well
- Compatible with up to four 8-well strip tubes

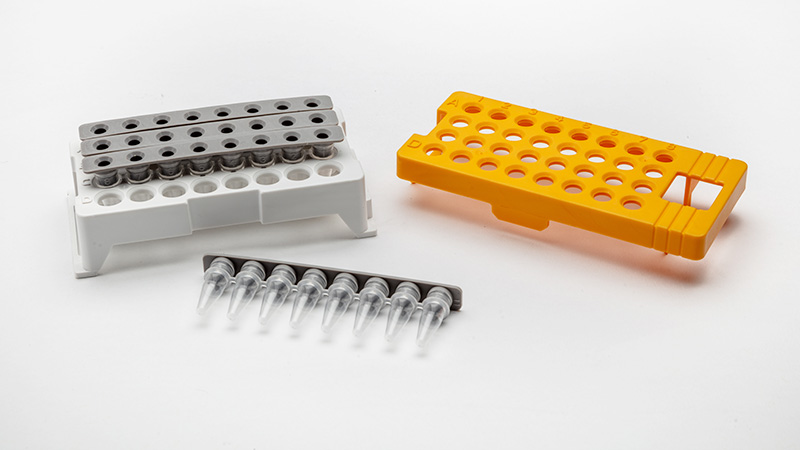

Strip Septa Mat, 8-Well
- Silicone to minimize sample evaporation

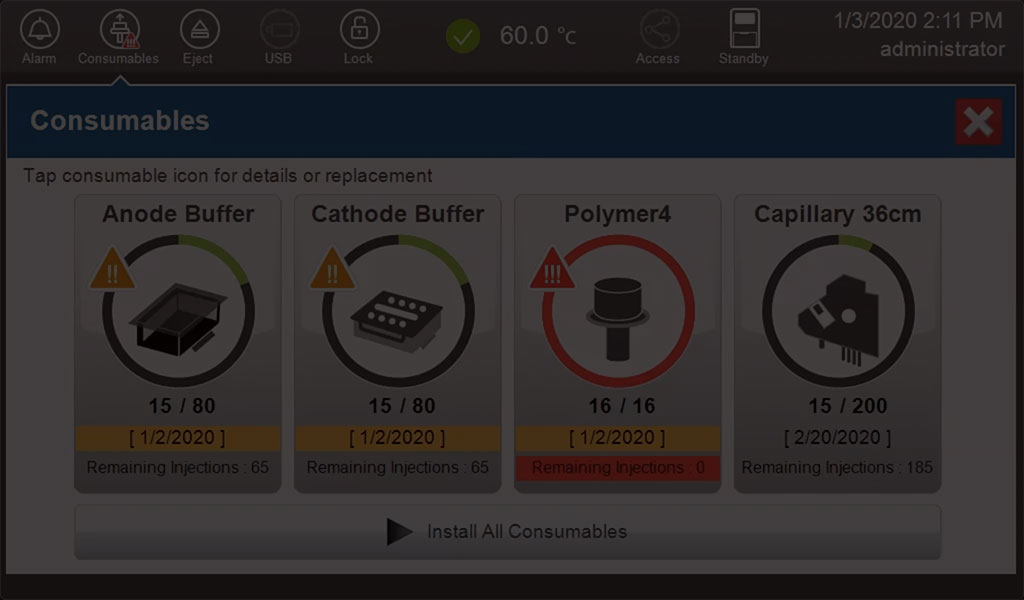

Watch a Video that Shows Installing and Monitoring Consumables on Spectrum Compact CE System
Instrument Software Version and Consumable Compatibility
|
To ensure compatibility with the latest polymer cartridges (CE2404 and CE2507), please check your instrument's system software version. If your Spectrum Compact is not running system software version v.6138800-00 or later, update your instrument to maintain seamless operation. |
|||||
| Software Version |
Polymer Cartridge |
||||
|
CE2507 |
CE2404 |
CE2407 |
CE2307 |
CE2304 |
|
| v.6138800-XX or later |
✓ |
✓ |
Incompatible |
Incompatible |
Incompatible |
| v.6138200-XX |
Incompatible |
✓ |
✓ |
✓ |
✓ |
| v.6138000-XX |
Incompatible |
Incompatible |
Incompatible |
✓ |
✓ |
✓ Compatible: The indicated consumable/software combinations are compatible.
Incompatible: The indicated consumable/software combinations are not compatible.
Protocols
No protocols available
Specifications
Catalog Number:
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Anode Buffer |
CE230A | 2 × 1 each |
Spectrum Compact Cathode Buffer |
CE230B | 2 × 1 each |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer4 |
CE234A | 4 × 64 wells |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer4 |
CE244A | 4 × 96 wells |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE237A | 4 × 64 wells |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE247A | 4 × 96 wells |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Spectrum Compact Polymer7 |
CE257A | 4 × 96 wells |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
What's in the box?
| Item | Part # | Size |
|---|---|---|
Capillary Preservation Buffer |
CE239A | 1 × 10ml |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
Not For Medical Diagnostic Use.Storage Conditions
